Tapered Roller Bearings - Four Row / Metric & Inch Series Product Table

Product Table

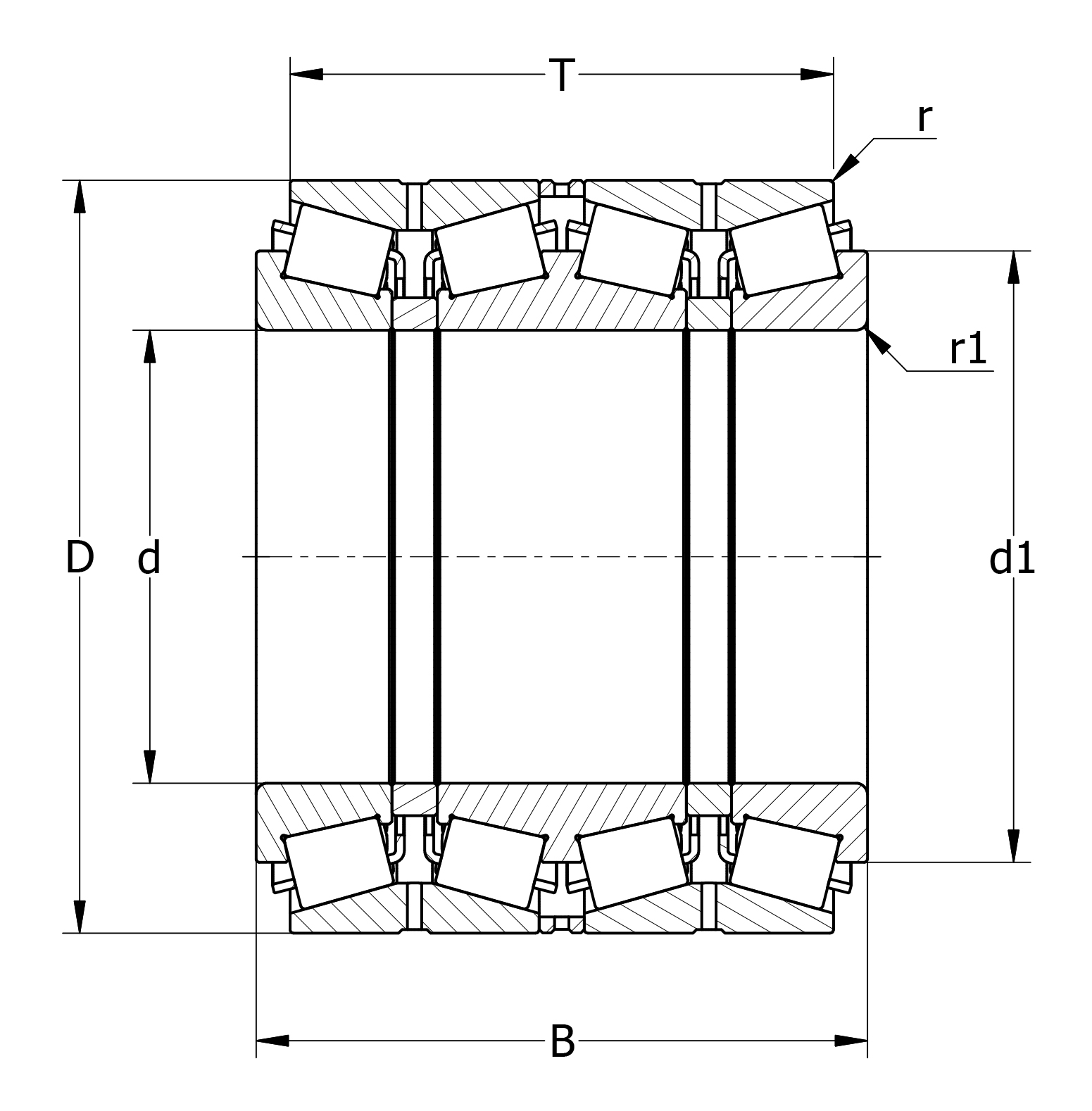

Boundary Dimensions
(mm)		 Bearing Number Basic Load Ratings
(N)		 Speed Ratings
(rpm)		 Mass
(kg)		 Abutment Dimensions
(mm)
d D B r
(min.)		 r1
(min.)		   C
(dynamic)		 C0
(static)		 Reference Speed Limiting Speed   d1 D1
95.25 137.00 122.24 0.8 2.3 LM 119348 D/11/11 D 452.60 553.50 TQO
127.00 183.00 158.75 1.5 3.3 48290 DW/220/220 D 746.70 1014.10 TQO
177.00 248.00 192.09 1.5 3.3 67790 D/20/21 D 1003.80 2773.90 TQO
181.00 284.00 239.72 3.3 3.3 M 240631 T/611 TD/611 D 1473.20 3662.70 TQIT
206.00 282.00 190.50 0.8 3.3 67986 DW/20/21 D 1390.20 2160.90 TQO
220.00 340.00 305.00 3.0 3.0 2077144 2522.20 5760.80 TQO
221.00 314.00 239.71 1.5 3.3 M 244249 D/210/210 D 2057.70 2856.90 TQO
244.00 327.00 193.68 1.5 3.3 LM 247748 D/710/710 D 1685.70 2429.70 TQO
260.35 422.00 317.50 6.4 3.3 HMC 252349 D/310/310 D 3661.30 5161.80 TQO
267.00 356.00 228.60 1.5 3.3 LM 451349 DW/10/10 D 1835.20 5324.40 TQO
280.00 460.00 324.00 5.0 5.0 1077756 2800.00 3840.00 TQO
286.00 381.00 244.48 1.5 3.3 LM 654648 DW/610/610 D 2614.80 4007.20 TQO
289.00 406.00 298.45 3.3 3.3 M 255449 D/410/410 D 3684.60 5362.20 TQO
300.00 460.00 390.00 4.0 4.0 2077160 3240.00 5070.00 TQO
318.00 448.00 327.03 3.3 3.3 HM 259049 D/10/10 D 4960.60 7280.00 TQO
343.00 457.00 252.50 1.5 3.3 LM 761649 DW/610/610 D 2388.00 6780.00 TQO
348.00 470.00 292.10 3.3 3.3 HM 262449 DW/410/410 D 3989.90 5676.40 TQO
368.00 524.00 382.59 3.3 6.4 M 265049 DW/010/010 D 6949.10 10245.70 TQO
384.00 546.00 400.05 3.3 6.4 HM 266449 DW/410/410 D 6981.20 9950.20 TQO
406.00 546.00 288.92 1.5 6.4 LM 767749 DW/10/10 D 3576.80 10589.90 TQO
450.00 595.00 368.00 3.0 6.0 M 270449 DW/410/410 D 7209.00 10603.50 TQO
480.00 700.00 420.00 6.0 2.5 577796 5468.00 15466.60 TQIT
500.00 720.00 420.00 8.0 8.0 771/500 5660.00 9050.00 TQO
630.00 920.00 515.00 8.0 8.0 771/630 8790.00 14600.00 TQO
