Double Row Cylindrical Roller Bearings / Product Table

Product Table

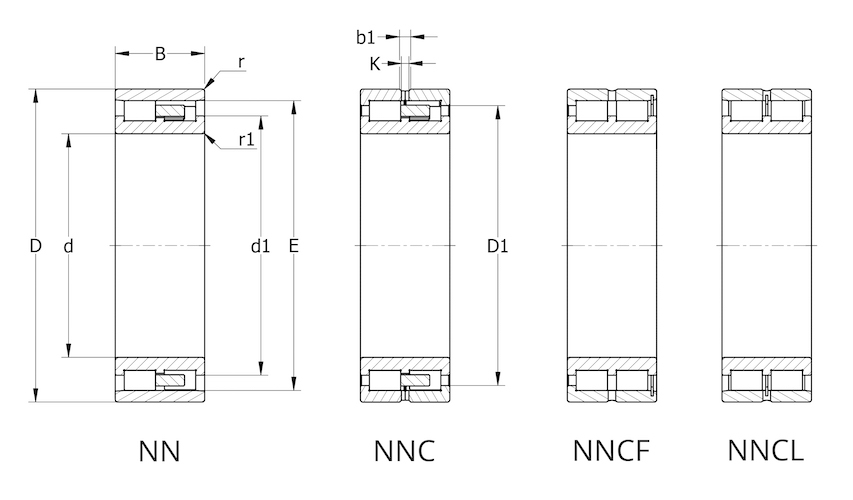

Boundary Dimensions
(mm)		 Bearing Number Basic Load Ratings
(N)		 Speed Ratings
(rpm)		 Mass
(kg)		 Abutment Dimensions
(mm)
d D B r1,2
(min.)		   C
(dynamic)		 C0
(static)		 Reference Speed Limiting Speed   d1 D1
30 55 19 1.0 NN 3006 29.0 34.0
35 62 20 1.0 NN 3007 35.5 44.0
40 68 21 1.0 NN 3008 45.0 58.5
45 75 23 1.0 NN 3009 54.0 72.0
50 80 23 1.0 NN 3010 57.0 80.0
55 90 26 1.1 NN 3011 72.0 100.0
60 95 26 1.1 NN 3012 75.0 110.0
65 100 26 1.1 NN 3013 76.5 116.0
70 110 30 1.1 NN 3014 98.0 150.0
75 115 30 1.1 NN 3015 100.0 156.0
80 125 34 1.1 NN 3016 120.0 186.0
85 130 34 1.1 NN 3017 125.0 200.0
90 140 37 1.5 NN 3018 140.0 224.0
95 145 37 1.5 NN 3019 143.0 236.0
100 140 40 1.1 NNU 4920 129.0 255.0
100 150 37 1.5 NN 3020 146.0 245.0
105 145 40 1.1 NNU 4921 129.0 260.0
105 160 41 2.0 NN 3021 190.0 310.0
110 150 40 1.1 NNU 4922 132.0 270.0
110 170 45 2.0 NN 3022 220.0 360.0
120 165 45 1.1 NNU 4924 176.0 340.0
120 180 46 2.0 NN 3024 232.0 390.0
130 180 50 1.5 NNU 4926 190.0 390.0
130 200 52 2.0 NN 3026 290.0 500.0
140 190 50 1.5 NNU 4928 190.0 400.0
140 210 53 2.0 NN 3028 300.0 520.0
150 210 60 2.0 NNU 4930 325.0 655.0
150 225 56 2.1 NN 3030 335.0 585.0
160 220 60 2.0 NNU 4932 335.0 680.0
160 240 60 2.1 NN 3032 375.0 670.0
170 230 60 2.0 NNU 4934 340.0 695.0
170 260 67 2.1 NN 3034 450.0 800.0
