Tapered Roller Bearings - Double Row / Metric & Inch Series Product Table

Product Table

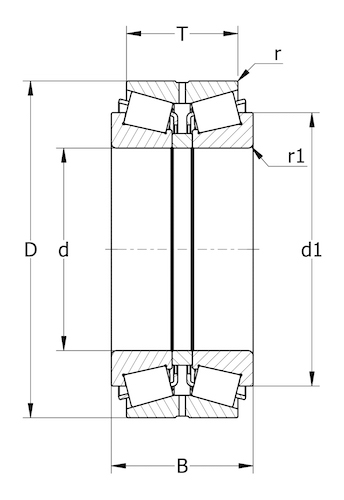

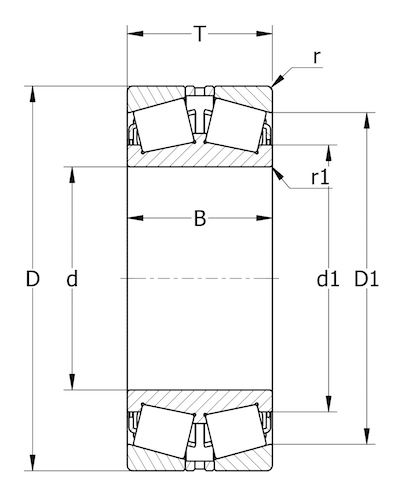

Boundary Dimensions
(mm)		 Bearing Number Basic Load Ratings
(N)		 Speed Ratings
(rpm)		 Mass
(kg)		 Abutment Dimensions
(mm)
d D B r
(min.)		 r1
(min.)		   C
(dynamic)		 C0
(static)		 Reference Speed Limiting Speed   d1 D1
30 62 50 1.0 0.6 97506 58.7 54.0
40 80 55 2.0 1.0 97508 91.2 87.9
45 85 55 2.0 1.0 97509 86.7 83.6
50 90 55 2.0 1.0 97510 100.0 107.0
55 100 60 2.0 1.0 97511 122.0 121.0
60 110 65 2.0 1.0 97512 141.0 148.0
70 125 75 2.0 1.0 97514 185.0 199.0
75 130 75 2.0 1.0 97515 193.0 212.0
80 140 80 3.0 1.0 97516 224.0 246.0
90 160 96 3.0 1.0 97518 294.0 336.0
95 170 108 3.0 1.0 97519 380.0 440.0
100 180 83 3.0 1.0 430220 457.0 1124.1
100 180 112 3.0 1.0 97520 391.0 462.0
105 190 118 3.0 1.0 97521 455.0 546.0
120 200 110 3.0 0.6 2097724 429.0 517.0
120 215 136 3.0 1.0 97524 591.0 744.0
130 210 110 3.0 0.6 2097726 475.0 599.0
130 230 149 4.0 1.5 97526 650.0 841.0
150 210 85 3.0 0.6 2097930 270.0 3900.0
150 250 138 3.0 1.0 2097730 667.0 838.0
150 270 172 4.0 1.5 97530 924.0 1180.0
160 270 150 3.0 1.0 2097732 791.0 1050.0
180 250 95 3.0 0.6 2097936 417.0 583.0
180 280 134 3.0 1.0 2097136 715.0 950.0
180 300 164 4.0 1.5 2097736 958.0 1290.0
190 260 95 3.0 0.6 2097938 431.0 618.0
190 320 172 4.0 1.5 2097738 991.0 1300.0
200 280 118 3.0 1.0 2097940 545.0 8200.0
200 310 151 3.0 1.0 2097140 857.0 1210.0
200 340 183 4.0 1.5 2097740 1250.0 1680.0
220 300 110 3.0 1.0 2097944 577.0 900.0
220 340 165 4.0 1.5 2097144 1030.0 1400.0
220 370 200 5.0 1.5 2097744 1400.0 1870.0
240 320 109 3.0 1.0 2097948 585.0 927.0
240 340 165 4.0 1.0 2097148 1030.0 1400.0
240 400 210 5.0 1.5 2097748 1580.0 2170.0
260 360 136 3.0 1.0 2097952 850.0 1280.0
260 400 186 5.0 1.5 2097152 1350.0 1960.0
260 440 225 5.0 1.5 2097752 1920.0 2590.0
280 420 189 5.0 1.5 2097156 1420.0 2030.0
300 420 160 4.0 1.0 2097960 1260.0 1800.0
340 460 160 4.0 1.0 2097968 1350.0 2000.0
360 480 160 4.0 1.0 2097972 1390.0 2090.0
