Spherical Roller Bearings / Metric Series Product Table

Product Table

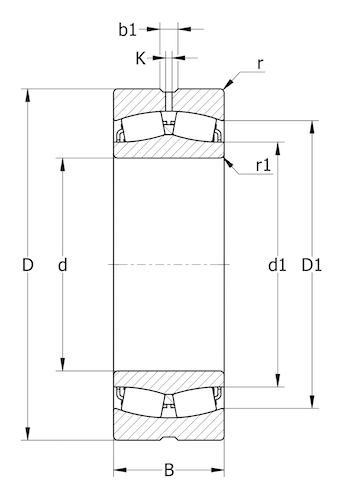

Boundary Dimensions
(mm)		 Bearing Number Basic Load Ratings
(N)		 Speed Ratings
(rpm)		 Mass
(kg)		 Abutment Dimensions
(mm)
d D B r,r1
(min.)		   C
(dynamic)		 C0
(static)		 Reference Speed Limiting Speed   d1 D1
20 52 15 1.1 21304 CC/W33 30.5 30.5
25 52 18 1.0 22205 CC/W33 35.7 35.7
25 62 17 1.1 21305 CC/W33 41.4 41.5
30 62 20 1.0 22206 CC/W33 48.9 52.0
30 72 19 1.1 21306 CC/W33 55.2 61.0
35 72 23 1.1 22207 CC/W33 67.3 73.5
35 80 21 1.5 21307 CC/W33 65.6 72.0
35 80 31 1.5 22307 CC/W33 89.4 165.4
40 80 23 1.1 22208 CC/W33 73.6 81.5
40 90 23 1.5 21308 CC/W33 82.8 98.0
40 90 33 1.5 22308 CC/W33 115.0 122.0
45 85 23 1.1 22209 CC/W33 77.1 88.0
45 100 25 1.5 21309 CC/W33 101.0 114.0
45 100 36 1.5 22309 CC/W33 138.0 160.0
50 90 23 1.1 22210 CC/W33 84.5 100.0
50 110 27 2.0 21310 CC/W33 120.0 140.0
50 110 40 2.0 22310 CC/W33 176.0 200.0
55 100 25 1.5 22211 CC/W33 99.5 118.0
55 120 29 2.0 21311 CC/W33 138.0 163.0
55 120 43 2.0 22311 CC W33 199.0 232.0
60 110 28 1.5 22212 CC/W33 122.0 146.0
60 130 31 2.1 21312 CC/W33 161.0 200.0
60 130 46 2.1 22312 CC/W33 235.0 280.0
65 120 31 1.5 22213 CC/W33 148.0 183.0
65 140 33 2.1 21313 CC/W33 184.0 240.0
65 140 48 2.1 22313 CC/W33 253.0 300.0
70 125 31 1.5 22214 CC/W33 148.0 186.0
70 150 35 2.1 21314 CC/W33 207.0 260.0
70 150 51 2.1 22314 CC/W33 311.0 380.0
75 130 31 1.5 22215 CC/W33 158.0 208.0
75 160 37 2.1 21315 CC/W33 235.0 300.0
75 160 55 2.1 22315 CC/W33 345.0 430.0
80 140 33 2.0 22216 CC/W33 176.0 228.0
80 170 39 2.1 21316 CC W33 258.0 335.0
80 170 58 2.1 22316 CC/W33 374.0 455.0
85 150 36 2.0 22217 CC/W33 210.0 270.0
85 180 41 3.0 21317 CC/W33 293.0 375.0
85 180 60 3.0 22317 CC/W33 420.0 520.0
90 160 40 2.0 22218 CC/W33 253.0 340.0
90 160 52 2.0 23218 CC/W33 311.0 440.0
90 190 43 3.0 21318 CC/W33 322.0 425.0
90 190 64 3.0 22318 CC/W33 477.0 610.0
95 170 43 2.1 22219 CC/W33 282.0 375.0
95 200 45 3.0 21319 CC/W33 351.0 480.0
95 200 67 3.0 22319 CC/W33 518.0 670.0
100 165 52 2.0 23120 CC/W33 322.0 490.0
100 180 46 2.1 22220 CC/W33 311.0 415.0
100 180 60 2.1 23220 CC/W33 414.0 600.0
100 215 47 3.0 21320 CC/W33 385.0 530.0
100 215 73 3.0 22320 CC/W33 610.0 800.0
110 170 45 2.0 23022 CC/W33 267.0 440.0
110 180 56 2.0 23122 CC/W33 374.0 585.0
110 180 69 2.0 24122 CC/W33 460.0 750.0
110 200 53 2.1 22222 CC/W33 408.0 560.0
110 200 70 2.1 23222 CC/W33 518.0 765.0
110 240 50 3.0 21322 CC/W33 460.0 630.0
110 240 80 3.0 22322 CC/W33 725.0 965.0
120 180 46 2.0 23024 CC/W33 305.0 510.0
120 180 60 2.0 24024 CC/W33 374.0 670.0
120 200 62 2.0 23124 CC/W33 449.0 695.0
120 200 80 2.0 24124 CC/W33 575.0 950.0
120 215 58 2.1 22224 CC/W33 466.0 670.0
120 215 76 2.1 23224 CC/W33 610.0 930.0
120 260 86 3.0 22324 CC/W33 845.0 1120.0
130 200 52 2.0 23026 CC/W33 374.0 610.0
130 200 69 2.0 24026 CC/W33 477.0 815.0
130 210 64 2.0 23126 CC/W33 489.0 780.0
130 210 80 2.0 24126 CC/W33 587.0 1000.0
130 230 64 3.0 22226 CC/W33 546.0 800.0
130 230 80 3.0 23226 CC/W33 690.0 1060.0
130 280 93 4.0 22326 CC/W33 978.0 1320.0
140 210 53 2.0 23028 CC/W33 397.0 680.0
140 210 69 2.0 24028 CC/W33 495.0 900.0
140 225 68 2.1 23128 CC/W33 546.0 900.0
140 225 85 2.1 24128 CC/W33 673.0 1160.0
140 250 68 3.0 22228 CC/W33 610.0 900.0
140 250 88 3.0 23228 CC/W33 799.0 1250.0
140 300 102 4.0 22328 CC/W33 1130.0 1560.0
150 225 56 2.1 23030 CC/W33 437.0 750.0
150 225 75 2.1 24030 CC/W33 564.0 1040.0
150 250 80 2.1 23130 CC/W33 725.0 1200.0
150 250 100 2.1 24130 CC/W33 897.0 1530.0
150 270 73 3.0 22230 CC/W33 736.0 1080.0
150 270 96 3.0 23230 CC/W33 937.0 1460.0
150 320 108 4.0 22330 CC/W33 1270.0 1760.0
160 240 60 2.1 23032 CC/W33 506.0 880.0
160 240 80 2.1 24032 CC/W33 656.0 1200.0
160 270 86 2.1 23132 CC/W33 845.0 1370.0
160 270 109 2.1 24132 CC/W33 1040.0 1760.0
160 290 80 3.0 22232 CC/W33 863.0 1290.0
160 290 104 3.0 23232 CC/W33 1070.0 1660.0
160 340 114 4.0 22332 CC/W33 1380.0 1960.0
170 260 67 2.1 23034 CC/W33 621.0 1060.0
170 260 90 2.1 24034 CC/W33 799.0 1460.0
170 280 88 2.1 23134 CC/W33 897.0 1500.0
170 280 109 2.1 24134 CC/W33 1070.0 1860.0
170 310 86 4.0 22234 CC/W33 978.0 1460.0
170 310 110 4.0 23234 CC/W33 1220.0 1930.0
170 360 120 4.0 22334 CC/W33 1540.0 2160.0
180 250 52 2.0 23936 CC/W33 431.0 830.0
180 280 74 2.1 23036 CC/W33 725.0 1250.0
180 280 100 2.1 24036 CC/W33 937.0 1730.0
180 300 96 3.0 23136 CC/W33 1050.0 1760.0
180 300 118 3.0 24136 CC/W33 1220.0 2160.0
180 320 86 4.0 22236 CC/W33 1010.0 1560.0
180 320 112 4.0 23236 CC/W33 1290.0 2120.0
180 380 126 4.0 22336 CC/W33 1730.0 2450.0
190 260 52 2.0 23938 CC/W33 414.0 800.0
190 290 75 2.1 23038 CC/W33 753.0 1340.0
190 290 100 2.1 24038 CC/W33 978.0 1800.0
190 320 104 3.0 23138 CC/W33 1200.0 2080.0
190 320 128 3.0 24138 CC/W33 1400.0 2500.0
190 340 92 4.0 22238 CC/W33 1110.0 1700.0
190 340 120 4.0 23238 CC/W33 1460.0 2400.0
190 400 132 5.0 22338 CC/W33 1870.0 2650.0
200 280 60 2.1 23940 CC/W33 546.0 1040.0
200 310 82 2.1 23040 CC/W33 880.0 1530.0
200 310 109 2.1 24040 CC/W33 1130.0 2120.0
200 340 112 3.0 23140 CC/W33 1380.0 2360.0
200 340 140 3.0 24140 CC/W33 1580.0 2800.0
200 360 98 4.0 22240 CC/W33 1270.0 1930.0
200 360 128 4.0 23240 CC/W33 1610.0 2700.0
200 420 138 5.0 22340 CC/W33 2020.0 2900.0
220 300 60 2.1 23944 CC/W33 546.0 1080.0
220 340 90 3.0 23044 CC/W33 1050.0 1860.0
220 340 118 3.0 24044 CC/W33 1360.0 2600.0
220 370 120 4.0 23144 CC/W33 1580.0 2750.0
220 370 150 4.0 24144 CC/W33 1840.0 3350.0
220 400 108 4.0 22244 CC/W33 1520.0 2360.0
220 400 144 4.0 23244 CC/W33 2070.0 3450.0
220 460 145 5.0 22344 CC/W33 2350.0 3450.0
240 320 60 2.1 23948 CC/W33 564.0 1160.0
240 360 92 3.0 23048 CC/W33 1130.0 2080.0
240 360 118 3.0 24048 CC/W33 1380.0 2700.0
240 400 128 4.0 23148 CC/W33 1790.0 3200.0
240 400 160 4.0 24148 CC/W33 2100.0 3900.0
240 440 120 4.0 22248 CC/W33 1910.0 3000.0
240 440 160 4.0 23248 CC/W33 2530.0 4300.0
240 500 155 5.0 22348 CC/W33 2670.0 4000.0
260 360 75 2.1 23952 CC/W33 880.0 1800.0
260 400 104 4.0 23052 CC/W33 1400.0 2550.0
260 400 140 4.0 24052 CC/W33 1760.0 3450.0
260 440 144 4.0 23152 CC/W33 2220.0 3900.0
260 440 180 4.0 24152 CC/W33 2620.0 4800.0
260 480 130 5.0 22252 CAC/W33 2300.0 3550.0
260 480 174 5.0 23252 CAC/W33 2820.0 4750.0
260 540 165 6.0 22352 CC/W33 3050.0 4550.0
280 380 75 2.1 23956 CC/W33 845.0 1760.0
280 420 106 4.0 23056 CC/W33 1520.0 2850.0
280 420 140 4.0 24056 CC/W33 1870.0 3800.0
280 460 146 5.0 23156 CC/W33 2300.0 4250.0
280 460 180 5.0 24156 CC/W33 2670.0 5100.0
280 500 130 5.0 22256 CAC/W33 2350.0 3750.0
280 500 176 5.0 23256 CAC/W33 2820.0 4900.0
280 580 175 6.0 22356 CC/W33 3450.0 5200.0
300 420 90 3.0 23960 CC/W33 1200.0 2500.0
300 460 118 4.0 23060 CC/W33 1840.0 3450.0
300 460 160 4.0 24060 CC/W33 2350.0 4750.0
300 500 160 5.0 23160 CC/W33 2820.0 5100.0
300 500 200 5.0 24160 CC/W33 3280.0 6300.0
300 540 140 5.0 22260 CAC/W33 2760.0 4250.0
300 540 192 5.0 23260 CAC/W33 3340.0 5850.0
320 440 90 3.0 23964 CAC/W33 1240.0 2700.0
320 480 121 4.0 23064 CC/W33 1960.0 3800.0
320 480 160 4.0 24064 CC/W33 2480.0 5100.0
320 540 176 5.0 23164 CC/W33 3280.0 6000.0
320 540 218 5.0 24164 CC/W33 3740.0 7100.0
320 580 150 5.0 22264 CAC/W33 3160.0 4900.0
320 580 208 5.0 23264 CAC/W33 3850.0 6700.0
340 460 90 3.0 23968 CC/W33 1270.0 2800.0
340 520 133 5.0 23068 CC/W33 2350.0 4550.0
340 520 180 5.0 24068 CC/W33 2990.0 6200.0
340 580 190 5.0 23168 CC/W33 3680.0 6800.0
340 580 243 5.0 24168 CAC/W33 4660.0 8650.0
340 620 224 6.0 23268 CC/W33 4660.0 8300.0
360 480 90 3.0 23972 CAC/W33 1290.0 2900.0
360 540 134 5.0 23072 CC/W33 2390.0 4800.0
360 540 180 5.0 24072 CC/W33 3110.0 6550.0
360 600 192 5.0 23172 CAC/W33 3740.0 6950.0
360 600 243 5.0 24172 CC/W33 4490.0 8650.0
360 650 232 6.0 23272 CA/W33 4660.0 8300.0
380 520 106 4.0 23976 CC/W33 1730.0 3800.0
380 560 135 5.0 23076 CC/W33 2480.0 5000.0
380 560 180 5.0 24076 CC/W33 3160.0 6800.0
380 620 194 5.0 23176 CA/W33 3740.0 7100.0
380 620 243 5.0 24176 CA/W33 4600.0 9150.0
380 680 240 6.0 23276 CA/W33 5060.0 9150.0
400 540 106 4.0 23980 CAC/W33 1730.0 3900.0
400 600 148 5.0 23080 CAC/W33 2880.0 5700.0
400 600 200 5.0 24080 CAC/W33 3620.0 7800.0
400 650 200 6.0 23180 CA/W33 4080.0 7650.0
400 650 250 6.0 24180 CA/W33 4890.0 9800.0
400 720 256 6.0 23280 CA/W33 5750.0 10400.0
420 560 106 4.0 23984 CAC/W33 1760.0 4150.0
420 620 150 5.0 23084 CA/W33 2990.0 6000.0
420 620 200 5.0 24084 CA/W33 3740.0 8150.0
420 700 224 6.0 23184 CA/W33 4890.0 9300.0
420 700 280 6.0 24184 CA/W33 5750.0 11400.0
420 760 272 7.5 23284 CA/W33 6330.0 11600.0
440 600 118 4.0 23988 CAC/W33 2100.0 4900.0
440 650 157 6.0 23088 CA/W33 3220.0 6550.0
440 650 212 6.0 24088 CA/W33 4080.0 8800.0
440 720 226 6.0 23188 CA/W33 5180.0 10000.0
440 720 280 6.0 24188 CA/W33 5980.0 12200.0
440 790 280 7.5 23288 CA/W33 6730.0 12500.0
460 620 118 4.0 23992 CA/W33 2190.0 5000.0
460 680 163 6.0 23092 CA/W33 3450.0 6950.0
460 680 218 6.0 24092 CA/W33 4370.0 9500.0
460 760 240 7.5 23192 CA/W33 5640.0 10800.0
460 760 300 7.5 24192 CA/W33 7250.0 14600.0
460 830 296 7.5 23292 CA/W33 7360.0 13700.0
480 650 128 5.0 23996 CA/W33 2530.0 5700.0
480 700 165 6.0 23096 CA/W33 3340.0 6800.0
480 700 218 6.0 24096 CA/W33 4490.0 10000.0
480 790 248 7.5 23196 CA/W33 6100.0 12000.0
480 790 308 7.5 24196 CA/W33 7250.0 15000.0
480 870 310 7.5 23296 CA/W33 8170.0 15000.0
500 670 128 5.0 239/500 CA/W33 2530.0 6000.0
500 720 167 6.0 230/500 CA/W33 3680.0 7800.0
500 720 218 6.0 240/500 CA/W33 4600.0 10400.0
500 830 264 7.5 231/500 CA/W33 6730.0 12900.0
500 830 325 7.5 241/500 CA/W33 8630.0 17000.0
500 920 336 7.5 232/500 CA/W33 9780.0 18300.0
530 710 136 5.0 239/530 CA/W33 2820.0 6700.0
530 780 185 6.0 230/530 CA/W33 4370.0 9300.0
530 780 250 6.0 240/530 CA/W33 5640.0 12700.0
530 870 272 7.5 231/530 CA/W33 7130.0 14000.0
530 870 335 7.5 241/530 CA/W33 9200.0 19000.0
530 980 335 9.5 232/530 CA/W33 11100.0 20400.0
