Single Row Deep Groove Ball Bearings / Product Table


Bearing Number Suffixes

Internal Design
A modified design
E optimized design
External Design
K tapered bore, taper 1:12
N snap ring groove on the outer ring
NR snap ring groove on the outer ring, with snap ring
RS seal on one side
2RS seals on both sides
Z shield on one side
ZZ shields on both sides
Cage
M machined brass cage
MA machined brass cage, outer ring riding
MB machined brass cage, inner ring riding
Accuracy and Clearance
P5 dimensional and running accuracy at P5 precision class
P6 dimensional and running accuracy at P6 precision class
C1 internal radial clearance less than C2
C2 internal radial clearance less than normal
C3 internal radial clearance larger than normal

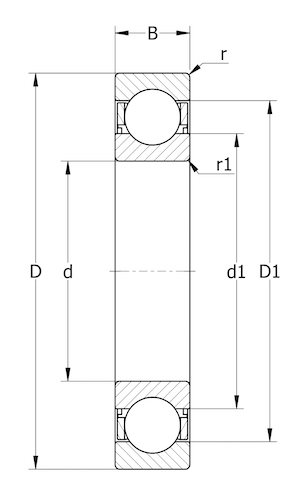

Boundary Dimensions
(mm)		 Bearing Number Basic Load Ratings
(N)		 Speed Ratings
(rpm)		 Mass
(kg)		 Abutment Dimensions
(mm)
d D B r1,2
(min.)		   C
(dynamic)		 C0
(static)		 Reference Speed Limiting Speed   d1 D1
10 30 9 0.6 6200 5.40 2.36 56000 34000 0.032 16.7 23.2
10 35 11 0.6 6300 8.52 3.40 50000 32000 0.053 17.5 26.9
12 32 10 0.6 6201 7.28 3.10 50000 32000 0.037 18.0 26.5
12 37 12 1.0 6301 10.10 4.15 45000 28000 0.06 19.5 29.7
15 32 9 0.3 6002 5.85 2.85 50000 32000 0.03 21.5 29.2
15 35 11 0.6 6202 8.06 3.75 43000 28000 0.045 21.7 29.2
15 42 13 1.0 6302 11.90 5.40 38000 24000 0.082 23.7 33.9
17 35 8 0.3 16003 6.37 3.25 45000 28000 0.032 22.5 29.5
17 35 10 0.3 6003 6.37 3.25 45000 28000 0.039 22.5 29.5
17 40 12 0.6 6203 9.95 4.75 38000 24000 0.065 24.5 33.1
17 47 14 1.5 6303 14.30 6.55 34000 22000 0.12 26.6 37.5
17 62 17 1.1 6403 22.90 10.80 28000 18000 0.27 32.4 47.4
20 37 9 0.3 61904 6.37 3.65 43000 26000 0.038 25.6 31.4
20 42 8 0.3 16004 7.28 4.05 38000 24000 0.05 27.3 34.6
20 42 12 0.6 6004 9.95 5.00 38000 24000 0.069 27.1 35.1
20 47 14 1.0 6204 13.50 6.55 32000 20000 0.11 28.5 38.7
20 52 15 1.1 6304 16.80 7.80 30000 19000 0.14 30.5 42.2
20 72 19 1.1 6404 30.70 15.00 24000 15000 0.40 37.1 55.6
25 42 9 0.3 61905 7.02 4.30 36000 22000 0.045 30.2 36.8
25 47 8 0.3 16005 8.06 4.75 32000 20000 0.06 32.8 39.7
25 47 12 0.6 6005 11.90 6.55 32000 20000 0.08 32.0 40.1
25 52 15 1.0 6205 14.80 7.80 28000 18000 0.13 34.4 44.0
25 62 17 1.1 6305 23.40 116.00 24000 16000 0.23 36.7 50.9
25 80 21 1.5 6405 35.80 19.30 20000 13000 0.53 44.0 63.5
30 47 9 0.3 61906 7.28 4.55 30000 19000 0.051 35.2 41.8
30 55 9 0.3 16006 11.90 7.35 28000 17000 0.085 38.0 46.8
30 55 13 1.0 6006 13.80 8.30 28000 17000 0.12 38.4 47.8
30 62 16 1.0 6206 20.30 11.20 24000 15000 0.20 40.4 52.0
30 72 19 1.1 6306 23.40 116.00 24000 16000 0.35 44.7 59.9
30 90 23 1.5 6406 43.60 23.60 18000 11000 0.74 50.5 70.6
35 55 10 0.6 61907 9.56 6.80 26000 16000 0.08 41.5 48.6
35 62 9 0.3 16007 13.00 8.15 24000 15000 0.11 44.5 53.0
35 62 14 1.0 6007 16.80 10.20 24000 15000 0.16 43.7 53.6
35 72 17 1.1 6207 27.00 15.30 20000 13000 0.29 47.1 60.5
35 80 21 1.5 6307 35.10 19.00 19000 12000 0.46 49.7 66.5
35 100 25 1.5 6407 55.30 31.00 16000 10000 0.95 57.6 80.1
40 62 12 0.6 61908 13.80 10.00 24000 14000 0.12 47.0 55.2
40 68 9 0.3 16008 13.80 9.15 22000 14000 0.13 51.5 60.5
40 68 15 1.0 6008 17.80 11.60 22000 14000 0.19 49.2 58.9
40 80 18 1.1 6208 32.50 19.00 18000 11000 0.37 52.5 68.5
40 90 23 1.5 6308 42.30 24.00 17000 11000 0.63 55.6 74.9
40 110 27 2.0 6408 63.70 36.50 14000 9000 1.25 61.0 89.3
45 68 12 0.6 61909 14.00 10.80 20000 13000 0.14 52.3 60.8
45 75 10 0.6 16009 16.50 10.80 20000 12000 0.17 55.5 64.3
45 75 16 1.0 6009 22.10 14.60 20000 12000 0.25 54.5 65.6
45 85 19 1.1 6209 35.10 21.60 17000 11000 0.41 57.7 72.6
45 100 25 1.5 6309 55.30 31.50 15000 9500 0.83 62.3 83.6
45 120 29 2.0 6409 76.10 45.00 13000 8500 1.55 69.3 96.0
50 65 7 0.3 61810 6.76 6.80 20000 13000 0.052 55.0 60.1
50 72 12 0.6 61910 14.60 11.80 19000 12000 0.14 56.5 65.3
50 80 10 0.6 16010 16.80 11.40 18000 11000 0.18 62.2 71.5
50 80 16 1.0 6010 22.90 16.00 18000 11000 0.26 59.7 70.4
50 90 20 1.1 6210 37.10 23.20 15000 10000 0.46 62.1 78.1
50 110 27 2.0 6310 65.00 38.00 13000 8500 1.05 69.0 91.8
50 130 31 2.1 6410 87.10 52.00 12000 7500 1.90 74.5 106.0
55 72 9 0.3 61811 9.04 8.80 19000 12000 0.083 60.0 67.1
55 80 13 1.0 61911 16.50 14.00 17000 11000 0.19 63.0 72.1
55 90 11 0.6 16011 20.30 14.00 16000 10000 0.26 68.5 78.0
55 90 18 1.1 6011 29.60 21.20 16000 10000 0.39 66.3 79.0
55 100 21 1.5 6211 46.20 29.00 14000 9000 0.61 69.0 86.0
55 120 29 2.0 6311 74.10 45.00 12000 8000 1.35 75.5 101.5
55 140 33 2.1 6411 99.50 62.00 11000 7000 2.30 81.8 112.2
60 78 10 0.3 61812 11.90 11.40 17000 11000 0.11 65.5 72.6
60 85 13 1.0 61912 16.50 14.30 16000 10000 0.20 68.0 77.1
60 95 11 0.6 16012 20.80 15.00 15000 9500 0.28 72.2 83.2
60 95 18 1.1 6012 30.70 23.20 15000 9500 0.42 71.3 84.0
60 110 22 1.5 6212 55.30 36.00 13000 8000 0.78 77.0 96.0
60 130 31 2.1 6312 85.20 52.00 11000 7000 1.70 82.0 108.0
60 150 35 2.1 6412 108.00 69.50 10000 6300 2.75 88.0 123.5
65 85 10 0.6 61813 12.40 12.70 16000 10000 0.13 71.5 78.6
65 90 13 1.0 61913 17.40 16.00 15000 9500 0.22 72.7 82.1
65 100 11 0.6 16013 22.50 16.60 14000 9000 0.30 77.9 87.8
65 100 18 1.1 6013 31.90 25.00 14000 9000 0.44 76.3 89.1
65 120 23 1.5 6213 58.50 40.50 12000 7500 0.99 83.0 103.0
65 140 33 2.1 6313 97.50 60.00 10000 6700 2.10 88.3 116.5
65 160 37 2.1 6413 M 119.00 78.00 9500 6000 3.30 93.0 132.8
70 90 10 0.6 61814 12.40 13.20 15000 9000 0.14 76.5 83.6
70 100 16 1.0 61914 23.80 21.20 14000 8500 0.35 79.5 90.6
70 110 13 0.6 16014 29.10 25.00 13000 8000 0.43 83.5 97.1
70 110 20 1.1 6014 39.70 31.00 13000 8000 0.60 82.2 98.5
70 125 24 1.5 6214 63.70 45.00 11000 7000 1.05 87.0 109.0
70 150 35 2.1 6314 111.00 68.00 9500 6300 2.50 95.0 125.0
70 180 42 3.0 6414 M 143.00 104.00 8500 5300 4.85 103.0 147.5
75 95 10 0.6 61815 12.70 14.30 14000 8500 0.15 81.5 88.6
75 105 16 1.0 61915 24.20 19.30 13000 8000 0.37 84.6 95.6
75 115 13 0.6 16015 30.20 27.00 12000 7500 0.46 88.5 102.0
75 115 20 1.1 6015 30.20 27.00 12000 7500 0.64 87.8 103.0
75 130 25 1.5 6215 68.90 49.00 10000 6700 1.20 91.0 114.0
75 160 37 2.1 6315 111.00 68.00 9500 6300 3.00 101.0 135.0
75 190 45 3.0 6415 M 153.00 114.00 8000 5000 6.80 109.5 156.0
80 100 10 0.6 61816 13.00 15.00 13000 8000 0.15 86.5 93.6
80 110 16 1.0 61916 25.10 20.40 12000 7500 0.40 89.6 100.8
80 125 14 0.6 16016 35.10 31.50 11000 7000 0.60 95.3 110.0
80 125 22 1.1 6016 49.40 40.00 11000 7000 0.85 93.7 112.2
80 140 26 2.0 6216 72.80 55.00 9500 6000 1.40 101.0 123.0
80 170 39 2.1 6316 130.00 86.50 8500 5300 3.60 108.3 142.0
80 200 48 3.0 6416 M 163.00 125.00 7500 4800 8.00 117.0 163.0
85 110 13 1.0 61817 19.50 20.80 12000 7500 0.27 93.0 102.1
85 120 18 1.1 61917 31.90 30.00 11000 7000 0.55 96.1 109.0
85 130 14 0.6 16017 35.80 33.50 11000 6700 0.63 100.0 115.0
85 130 22 1.1 6017 52.00 43.00 11000 6700 0.89 99.1 115.9
85 150 28 2.0 6217 87.10 64.00 9000 5600 1.80 105.8 130.7
85 180 41 3.0 6317 140.00 96.50 8000 5000 4.25 114.0 152.0
85 210 52 4.0 6417 M 174.00 137.00 7000 4500 9.50 123.0 171.0
90 115 13 1.0 61818 19.50 22.00 11000 7000 0.28 98.0 107.2
90 125 18 1.1 61918 33.20 31.50 11000 6700 0.59 101.0 114.1
90 140 16 1.0 16018 43.60 39.00 10000 6300 0.85 107.1 124.0
90 140 24 1.5 6018 60.50 50.00 10000 6300 1.15 104.8 125.6
90 160 30 2.0 6218 101.00 73.50 8500 5300 2.15 112.0 140.2
90 190 43 3.0 6318 151.00 108.00 7500 4800 4.90 118.8 161.1
90 225 54 4.0 6418 M 186.00 150.00 6700 4300 11.50 132.5 182.5
95 120 13 1.0 61819 19.90 22.80 11000 6700 0.30 103.0 112.1
95 130 18 1.1 61919 33.80 33.50 10000 6300 0.61 106.0 119.0
95 145 16 1.0 16019 44.80 41.50 9500 6000 0.89 113.5 129.0
95 145 24 1.5 6019 63.70 54.00 9500 6000 1.20 110.2 131.3
95 170 32 2.1 6219 114.00 81.50 8000 5000 2.60 118.0 148.0
95 200 45 3.0 6319 159.00 118.00 7000 4500 5.65 126.5 168.9
95 240 55 4.0 6419 M 196.00 143.00 5000 3200 13.40 137.5 195.5
100 125 13 1.0 61820 19.90 24.00 10000 6300 0.31 107.6 117.4
100 140 20 1.1 61920 42.30 41.00 9500 6000 0.83 112.0 128.0
100 150 16 1.0 16020 46.20 44.00 9500 5600 0.91 116.0 134.1
100 150 24 1.5 6020 63.70 54.00 9500 6000 1.25 115.5 134.7
100 180 34 2.1 6220 127.00 93.00 7500 4800 3.15 124.0 156.3
100 215 47 3.0 6320 174.00 140.00 6700 4300 7.00 136.2 182.8
100 250 58 5.0 6420 MA 223.00 195.00 5000 3200 15.50 145.0 205.6
105 130 13 1.0 61821 20.80 19.60 10000 6300 0.32 113.0 122.1
105 145 20 1.1 61921 44.20 44.00 9500 5600 0.87 117.0 133.0
105 160 18 1.0 16021 54.00 51.00 8500 5300 1.20 124.0 143.0
105 160 26 2.0 6021 76.10 65.50 8500 5300 1.60 122.0 143.2
105 190 36 2.1 6221 140.00 104.00 7000 4500 3.70 131.3 163.7
105 225 49 3.0 6321 M 182.00 153.00 6300 4000 8.25 141.0 192.0
110 140 16 1.0 61822 28.10 26.00 9500 5600 0.60 119.5 130.6
110 150 20 1.1 61922 43.60 45.00 9000 5600 0.90 122.0 138.0
110 170 19 1.0 16022 60.20 57.00 8000 5000 1.45 130.0 150.5
110 170 28 2.0 6022 85.20 73.50 8000 5000 1.95 130.0 152.0
110 200 38 2.1 6222 151.00 118.00 6700 4300 4.35 139.9 174.1
110 240 50 3.0 6322 M 203.00 180.00 6000 3800 9.55 149.0 201.5
120 150 16 1.0 61824 29.10 28.00 8500 5300 0.65 129.0 141.0
120 165 22 1.1 61924 55.30 57.00 8000 5000 1.20 134.0 151.2
120 180 19 1.0 16024 63.70 64.00 7500 4800 1.60 139.2 160.7
120 180 28 2.0 6024 88.40 80.00 7500 4800 2.05 138.5 161.7
120 215 40 2.1 6224 M 146.00 118.00 6300 4000 5.15 149.9 186.1
120 260 55 3.0 6324 M 208.00 186.00 5600 3400 12.50 164.3 215.7
130 165 18 1.1 61826 37.70 43.00 8000 4800 0.93 140.5 154.5
130 180 24 1.5 61926 65.00 67.00 7500 4500 1.85 145.5 164.7
130 200 22 1.1 16026 83.20 81.50 7000 4300 2.35 153.5 176.5
130 200 33 2.0 6026 11.20 100.00 7000 4300 3.15 151.5 178.8
130 230 40 3.0 6226 M 156.00 132.00 5600 3600 5.80 159.0 199.4
130 280 58 4.0 6326 M 229.00 216.00 5000 3200 17.50 178.3 231.8
140 175 18 1.1 61828 39.00 46.50 7500 4500 0.99 150.4 164.6
140 190 24 1.5 61928 66.30 72.00 7000 5600 1.70 155.5 174.5
140 210 22 1.1 16028 80.60 86.50 6700 4000 2.50 162.7 187.5
140 210 33 2.0 6028 M 111.00 108.00 6700 4000 3.35 162.5 188.6
140 250 42 3.0 6228 M 165.00 150.00 5300 3400 7.45 214.0 176.0
140 300 62 4.0 6328 M 276.00 285.00 4300 4000 22.00 191.4 248.6
150 190 20 1.1 61830 48.80 61.00 6700 4300 1.40 163.0 178.0
150 210 28 2.0 61930 88.40 93.00 6300 5300 3.05 167.6 192.4
150 225 24 1.1 16030 92.20 98.00 6000 3800 3.15 174.5 200.0
150 225 35 2.1 6030 M 125.00 125.00 6000 3800 4.80 174.2 200.8
150 270 45 3.0 6230 M 174.00 166.00 5000 3200 9.40 190.0 230.0
150 320 65 4.0 6330 M 276.00 285.00 4300 4000 26.00 205.0 265.0
160 200 20 1.1 61832 49.40 64.00 6300 4000 1.45 171.7 188.3
160 220 28 2.0 61932 92.30 98.00 6000 5000 3.25 178.5 201.7
160 240 25 1.5 16032 99.50 10.80 5600 3600 3.70 188.7 211.7
160 240 38 2.1 6032 M 143.00 143.00 5600 3600 5.90 184.0 216.3
160 290 48 3.0 6232 M 186.00 186.00 4500 3000 14.50 206.0 244.0
160 340 68 4.0 6332 M 276.00 285.00 4300 4000 29.00 218.0 282.7
170 215 22 1.1 61834 61.80 78.00 6000 3600 1.90 182.7 202.3
170 230 28 2.0 61934 93.60 106.00 5600 4800 3.40 188.5 212.0
170 260 28 1.5 16034 119.00 129.00 5300 3200 5.00 203.4 228.7
170 260 42 2.1 6034 M 168.00 173.00 5300 4300 7.90 198.8 231.2
170 310 52 4.0 6234 M 212.00 224.00 4300 3800 17.50 217.0 263.5
170 360 72 4.0 6334 M 312.00 340.00 3800 3400 34.50 233.0 297.7
180 225 22 1.1 61836 62.40 81.50 5600 3400 2.00 192.6 212.4
180 250 33 2.0 61936 119.00 134.00 5300 3400 5.05 201.5 228.8
180 280 31 2.0 16036 138.00 146.00 4800 4000 6.60 216.8 245.1
180 280 46 2.1 6036 M 190.00 200.00 4800 4000 10.50 211.0 250.0
180 320 52 4.0 6236 M 229.00 240.00 4000 3600 18.50 226.0 274.5
180 380 75 4.0 6336 M 351.00 405.00 3600 3200 42.50 245.0 318.7
190 240 24 1.5 61838 76.10 98.00 5300 3200 2.60 204.0 226.0
190 260 33 2.0 61938 117.00 134.00 5000 4300 5.25 211.5 238.8
190 290 31 2.0 16038 148.00 166.00 4800 3000 7.90 224.0 256.0
190 290 46 2.1 6038 M 195.00 216.00 4800 3800 11.00 222.0 258.0
190 340 55 4.0 6238 M 255.00 280.00 3800 3400 23.00 239.0 291.5
190 400 78 5.0 6338 M 371.00 430.00 3400 3000 49.00 258.0 332.0
200 250 24 1.5 61840 76.10 102.00 5000 3200 2.70 215.0 235.2
200 280 38 2.1 61940 148.00 166.00 4800 3800 7.40 224.5 255.8
200 310 34 2.0 16040 168.00 190.00 4300 2800 8.85 238.5 270.8
200 310 51 2.1 6040 M 216.00 245.00 4300 3600 14.00 234.0 276.4
200 360 58 4.0 6240 M 270.00 310.00 3600 3200 28.00 252.0 308.6
200 420 80 5.0 6340 M 377.00 465.00 3200 2900 72.50 273.8 346.2
220 270 24 1.5 61844 78.00 110.00 4500 2800 3.00 235.0 255.5
220 300 38 2.1 61944 MA 151.00 180.00 4300 3600 8.00 245.0 276.0
220 340 37 2.1 16044 174.00 204.00 4000 2400 11.50 263.0 297.3
220 340 56 3.0 6044 M 247.00 290.00 4000 3200 18.50 257.0 303.5
220 400 65 4.0 6244 M 296.00 365.00 3200 3000 37.00 280.0 343.0
220 460 88 5.0 6344 M 410.00 520.00 3000 2600 72.50 300.0 381.0
240 300 28 2.0 61848 MA 108.00 150.00 4000 2600 4.50 258.5 282.0
240 320 38 2.1 61948 MA 159.00 200.00 4000 3200 8.60 264.5 295.8
240 360 37 2.1 16048 M 178.00 220.00 3600 3000 14.50 283.0 317.3
240 360 56 3.0 6048 M 255.00 315.00 3600 3000 19.50 277.0 324.0
240 440 72 4.0 6248 M 358.00 465.00 3000 2600 51.00 309.5 370.5
260 320 28 2.0 61852 MA 111.00 163.00 3800 2400 4.80 278.5 302.0
260 360 46 2.1 61952 MA 212.00 270.00 3600 3000 14.50 291.0 330.0
260 400 44 3.0 16052 M 238.00 310.00 3200 2800 21.50 308.0 352.5
260 400 65 4.0 6052 M 291.00 375.00 3200 2800 29.50 304.0 356.5
260 480 80 5.0 6252 M 390.00 530.00 2600 2400 65.50 336.7 403.3
280 350 33 2.0 61856 MA 138.00 200.00 3400 2200 7.40 301.5 328.8
280 380 46 2.1 61956 MA 21.60 285.00 3200 2800 15.00 311.0 350.0
280 420 44 3.0 16056 M 242.00 335.00 3000 2600 23.00 329.0 371.5
280 420 65 4.0 6056 M 302.00 405.00 3000 2600 31.00 324.0 376.0
280 500 80 5.0 6256 M 423.00 600.00 2600 2200 71.00 353.0 427.0
300 380 38 2.1 61860 MA 172.00 245.00 3200 2600 10.50 325.0 355.3
300 420 56 3.0 61960 MA 270.00 375.00 3000 2400 24.50 337.0 383.5
300 460 50 4.0 16060 M 286.00 405.00 2800 2400 32.00 358.0 404.5
300 460 74 4.0 6060 M 358.00 500.00 2800 2400 44.00 350.0 410.0
320 400 38 2.1 61864 MA 172.00 255.00 3000 2400 11.00 345.0 375.5
320 440 56 3.0 61964 MA 276.00 400.00 2800 2400 25.50 357.0 403.5
320 480 50 4.0 16064 M 281.00 405.00 2600 2200 34.00 377.0 423.5
320 480 74 4.0 6064 M 371.00 540.00 2600 2200 46.00 369.0 433.7
340 420 38 2.1 61868 MA 178.00 275.00 2800 2400 11.50 364.0 396.5
340 460 56 3.0 61968 MA 281.00 425.00 2600 2200 26.50 378.0 422.0
340 520 57 4.0 16068 M 345.00 520.00 2400 2000 45.00 398.0 462.0
340 520 82 5.0 6068 M 423.00 640.00 2400 2000 62.00 396.0 462.0
360 440 38 2.1 61872 MA 182.00 285.00 2600 2200 12.00 384.0 416.5
360 480 56 3.0 61972 MA 291.00 450.00 2600 2200 28.00 398.0 442.0
360 540 57 4.0 16072 M 351.00 550.00 2400 1900 49.00 418.0 482.0
360 540 82 5.0 6072 M 462.00 735.00 2400 1900 64.50 423.7 489.0
380 480 46 2.1 61876 MA 242.00 390.00 2400 2000 20.00 410.0 451.0
380 520 65 4.0 61976 MA 338.00 540.00 2400 1900 40.00 425.0 475.0
380 560 57 4.0 16076 M 377.00 620.00 2200 1800 51.00 438.0 502.0
380 560 82 5.0 6076 M 462.00 750.00 2200 1800 67.50 436.0 502.0
400 500 46 2.1 61880 MA 247.00 405.00 2400 1900 20.50 432.0 471.0
400 540 65 4.0 61980 MA 345.00 570.00 2200 1800 41.50 445.0 495.0
400 600 90 5.0 6080 M 520.00 865.00 2000 1700 87.50 462.0 536.0
420 520 46 2.1 61884 MA 251.00 425.00 2200 1800 21.50 451.0 491.0
420 560 65 4.0 61984 MA 351.00 600.00 2200 1800 43.00 465.0 515.0
420 620 90 5.0 6084 M 507.00 880.00 2000 1600 91.50 482.0 558.0
440 540 46 2.1 61888 MA 255.00 440.00 2200 1800 22.50 470.0 510.0
440 600 74 4.0 61988 MA 410.00 720.00 2000 1600 60.50 492.0 548.0
440 650 94 6.0 6088 M 553.00 965.00 1900 1500 105.00 505.0 586.0
460 580 56 3.0 61892 MA 319.00 570.00 2000 1600 35.00 496.0 544.0
460 620 74 4.0 61992 MA 423.00 750.00 1900 1600 62.50 512.0 568.0
460 680 100 6.0 6092 M 582.00 1060.00 1800 1500 120.00 528.0 614.0
480 600 56 3.0 61896 MA 325.00 600.00 1900 1600 36.50 518.0 564.0
480 650 78 5.0 61996 MA 449.00 815.00 1800 1500 74.00 535.0 595.0
480 700 100 6.0 6096 M 618.00 1140.00 1700 1400 125.00 548.0 630.0
500 620 56 3.0 618/500 MA 332.00 620.00 1800 1500 40.50 537.0 583.5
500 670 78 5.0 619/500 MA 462.00 865.00 1700 1400 77.00 555.0 615.0
500 720 100 6.0 60/500 MA 605.00 1140.00 1600 1300 135.00 568.0 650.0
530 650 56 3.0 618/530 MA 332.00 655.00 1700 1400 39.50 568.0 614.0
530 710 82 5.0 619/530 MA 488.00 930.00 1600 1300 90.50 587.0 653.0
530 780 112 6.0 60/530 MA 650.00 1270.00 1500 1200 185.00 613.0 697.0
560 680 56 3.0 618/560 MA 345.00 695.00 1600 1300 42.00 598.0 644.0
560 750 85 5.0 619/560 MA 494.00 980.00 1500 1200 105.00 621.0 689.7
600 730 60 3.0 618/600 MA 364.00 765.00 1500 2000 52.00 642.0 688.0
600 800 90 5.0 619/600 MA 585.00 1220.00 1400 1100 125.00 664.0 736.0
630 780 69 4.0 618/630 MA 442.00 965.00 1400 1100 73.00 678.0 732.0
630 850 100 6.0 619/630 MA 624.00 1340.00 1300 1100 160.00 702.0 778.0
670 820 69 4.0 618/670 MA 442.00 1000.00 1300 1100 83.50 718.0 772.0
670 900 103 6.0 619/670 MA 676.00 1500.00 1200 1000 185.00 745.0 825.0
710 870 74 4.0 618/710 MA 475.00 1100.00 1200 1000 93.50 761.0 819.0
710 950 106 6.0 619/710 MA 663.00 1500.00 1100 900 220.00 790.0 870.0
800 980 82 5.0 618/800 MA 559.00 1370.00 1000 850 130.00 857.0 923.0
900 1090 85 5.0 618/900 MA 618.00 1600.00 850 700 160.00 961.0 1030.0
