Tapered Roller Bearings - Single Row / Inch Series Product Table

Product Table

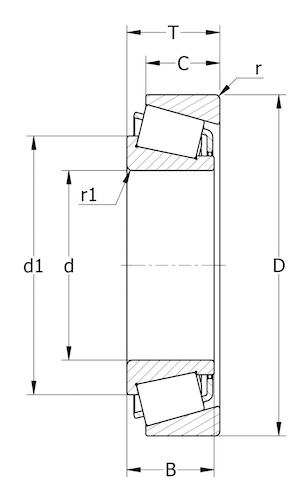

Boundary Dimensions
(mm)		 Bearing Number Basic Load Ratings
(N)		 Speed Ratings
(rpm)		 Mass
(kg)		 Abutment Dimensions
(mm)
d D B r
(min.)		 r1
(min.)		   C
(dynamic)		 C0
(static)		 Reference Speed Limiting Speed   d1 D1
0.590 1.378 0.433 0.8 1.3 K-A 4059/K-A 4138 13.4 13.2
0.625 1.625 0.563 1.3 2.0 K-03062/K-03162 22.0 21.2
0.625 1.688 0.563 1.5 1.5 K-11590/K-11520 17.6 17.6
0.688 1.570 0.545 1.3 1.3 K-LM 11749/K-LM 11710 21.2 20.8
0.750 1.781 0.610 1.3 1.3 K-LM 11949/K-LM 11910 27.5 27.5
0.750 1.938 0.710 1.3 1.3 K-09067/K-09195 39.1 40.0
0.750 1.938 0.781 1.5 1.3 K-09074/K-09195 39.1 40.0
0.750 1.938 0.781 1.3 1.3 K-09078/K-09195 39.1 40.0
0.750 1.938 0.835 1.3 1.5 K-09067/K-09196 39.1 40.0
0.750 1.938 0.906 1.5 1.5 K-09074/K-09196 39.1 40.0
0.750 1.938 0.906 1.3 1.5 K-09078/K-09196 39.1 40.0
0.750 2.125 0.875 1.5 2.3 K-21075/K-21212 39.6 39.0
0.812 1.938 0.781 1.5 1.3 K-09081/K-09195 39.1 40.0
0.812 1.938 0.906 1.5 1.5 K-09081/K-09196 39.1 40.0
0.844 1.969 0.690 1.3 1.3 K-M 12649/K-M 12610 36.9 38.0
0.866 1.781 0.610 1.3 1.3 K-LM 12749/K-LM 12710 27.5 31.0
0.866 1.810 0.610 1.3 1.3 K-LM 12749/K-LM 12711 27.5 31.0
0.875 2.000 0.591 1.5 1.5 K-07087/K-07210 X 28.1 30.5
0.875 2.063 0.763 1.5 1.5 K-1380/K-1328 41.8 44.0
1.000 1.980 0.560 1.3 1.3 K-L 44643/K-L 44610 26.0 30.0
1.000 2.000 0.591 1.5 1.5 K-07100 S/K-07210 X 28.1 30.5
1.000 2.000 0.591 3.3 1.5 K-07100 SA/K-07210 X 28.1 30.5
1.000 2.250 0.765 1.5 1.5 K-M 84548/K-M 84510 39.6 45.0
1.000 2.441 0.750 0.8 1.3 K-15101/K-15245 48.4 57.0
1.000 2.500 0.813 3.5 1.3 15100/15250 47.4 86.0
1.000 2.500 0.813 0.8 1.5 K-15101/K-15250 X 48.4 57.0
1.024 2.354 0.688 2.0 2.0 1838057/1838058 43.5 76.3
1.063 1.980 0.560 3.5 1.3 K-L 44649/K-L 44610 26.0 30.0
1.125 2.250 0.781 3.5 1.5 K-1988/K-1922 47.3 55.0
1.125 2.441 0.750 3.5 1.3 K-15112/K-15245 48.4 57.0
1.125 2.500 0.813 3.5 1.5 K-15112/K-15250 48.4 57.0
1.125 2.531 0.844 1.5 1.5 K-M 86647/K-M 86610 49.5 61.0
1.125 2.688 0.875 0.8 1.5 K-02474/K-02420 58.3 69.5
1.142 1.980 0.560 3.5 1.3 331274 26.0 32.5
1.181 2.717 0.781 0.8 1.3 K-14118/K-14276 53.9 67.0
1.181 2.838 0.881 0.8 2.3 K-14118/K-14283 53.9 67.0
1.188 2.531 0.844 1.5 1.5 K-M 86649/K-M 86610 49.5 61.0
1.188 2.688 0.875 2.3 1.5 K-M 88043/K-M 88010 55.0 69.5
1.188 2.688 0.875 2.3 2.3 K-M 88043/K-M 88011 55.0 69.0
1.190 2.441 0.750 3.5 1.3 K-15118/K-15245 48.4 57.0
1.190 2.500 0.813 3.5 1.5 K-15118/K-15250 X 48.4 57.0
1.250 2.328 0.625 3.6 1.3 K-LM 67048/K-LM 67010 34.7 41.5
1.250 2.441 0.715 4.0 1.3 K-15123/K-15245 48.4 57.0
1.250 2.500 0.778 4.0 1.5 K-15123/K-15250 X 48.4 57.0
1.250 2.615 1.000 0.8 3.3 K-2580/K-2520 69.3 81.5
1.250 2.688 0.875 1.5 1.5 K-M 88046/K-M 88010 55.0 69.5
1.250 2.688 0.875 1.5 2.3 K-M 88046/K-M 88011 55.0 69.5
1.250 2.859 1.188 0.8 3.3 3188 / 3120 79.3 144.1
1.250 2.875 1.156 1.3 3.3 K-HM 88452/K-HM 88510 70.4 95.0
1.250 3.125 1.000 1.5 1.5 K-43125/K-43312 67.1 71.0
1.313 2.688 0.875 0.8 1.5 K-M 88048/K-M 88010 55.0 69.5
1.313 2.688 0.875 0.8 2.3 K-M 88048/K-M 88011 55.0 69.5
1.313 2.717 0.781 3.5 3.3 K-14130/K-14274 53.9 67.0
1.313 2.717 0.781 3.5 1.3 K-14130/K-14276 53.9 67.0
1.313 2.750 0.938 3.5 1.3 2585/2523 70.4 133.2
1.313 2.838 0.881 3.5 2.3 K-14130/K-14283 53.9 67.0
1.313 3.000 1.156 0.8 3.3 K-HM 89443/K-HM 89410 78.1 106.0
1.313 3.125 1.000 3.5 1.5 K-43131/K-43312 67.1 71.0
1.375 2.563 0.710 3.6 1.3 K-LM 484548/K-LM 48510 47.3 57.0
1.375 2.717 0.781 1.5 1.3 K-14137 A/K-14276 53.9 67.0
1.375 2.717 0.781 3.5 1.3 K-14138 A/K-14276 53.9 67.0
1.375 2.717 0.781 1.5 3.3 K-14137 A/K-14274 53.9 67.0
1.375 2.717 0.781 3.5 3.3 K-14138 A/K-14274 53.9 67.0
1.375 2.717 1.062 0.8 1.3 K-14136 A/K-14276 53.9 67.0
1.375 2.717 1.062 0.8 3.3 K-14136 A/K-14274 53.9 67.0
1.375 2.838 0.881 1.5 2.3 K-14137 A/K-14283 53.9 67.0
1.375 2.838 0.881 3.5 2.3 K-14138 A/K-14283 53.9 67.0
1.375 2.838 1.162 0.8 2.3 K-14136 A/K-14283 53.9 67.0
1.375 2.844 1.000 2.3 2.3 K-HM 88649/K-HM 88610 67.1 90.0
1.375 3.000 0.813 1.5 1.3 K-28137/K-28300 56.1 64.0
1.375 3.000 1.156 3.5 3.3 K-HM 89446/K-HM 89410 78.1 106.0
1.375 3.000 1.156 3.5 3.3 K-31593/K-31520 85.8 106.0
1.375 3.000 1.156 1.5 3.3 K-31594/K-31520 85.8 106.0
1.375 3.125 1.156 3.5 3.3 K-3478/K-3420 91.3 110.0
1.375 3.151 0.844 1.5 1.5 K-28137/K-28317 56.1 64.0
1.375 3.438 1.188 3.5 3.3 K-3581/K-3525 102.0 132.0
1.375 2.875 0.938 1.5 0.8 K-25877/K-25821 72.1 88.0
1.375 2.875 0.938 1.5 2.3 K-25877/K-25820 72.1 88.0
1.375 2.875 1.063 3.5 1.5 K-23690/K-23620 73.7 88.0
1.378 2.328 0.625 3.5 1.3 K-L 68149/K-L 68110 33.0 44.0
1.378 2.361 0.625 3.5 1.3 K-L 68149/K-L 68111 33.0 44.0
1.437 2.875 0.938 1.5 0.8 K-25880/K-25821 72.1 88.0
1.437 2.875 0.938 1.5 2.3 K-25880/K-25820 72.1 88.0
1.437 2.875 0.938 3.5 0.8 K-2794/K-2735 X 74.8 93.0
1.437 3.000 0.938 3.5 3.3 K-2794/K-2720 74.8 93.0
1.438 3.000 1.156 0.8 3.3 K-HM 89448/K-HM 89410 78.1 106.0
1.438 3.000 1.156 3.5 3.3 K-HM 89449/K-HM 894410 78.1 106.0
1.438 3.000 1.156 3.5 3.3 K-31597/K-31520 85.8 106.0
1.500 2.563 0.710 2.3 1.3 K-LM 29749/K-LM 29710 42.9 57.0
1.500 2.563 0.780 2.3 1.3 K-LM 29749/K-LM 29711 42.9 57.0
1.500 2.835 0.670 1.5 2.0 K-19150/K-19283 X 42.9 51.0
1.500 2.835 0.748 3.5 1.5 K-16150/K-16283 49.5 60.0
1.500 2.844 0.813 3.5 1.3 K-16150/K-16284 49.5 60.0
1.500 2.844 0.938 3.5 2.3 K-16150/K-16283 49.5 60.0
1.500 2.875 0.938 3.5 0.8 K-2788/K-2735 X 74.8 93.0
1.500 3.000 0.813 1.5 1.3 K-28150/K-28300 56.1 64.0
1.500 3.000 0.938 3.5 0.8 K-2788/K-2729 74.8 93.0
1.500 3.000 0.938 3.5 3.3 K-2788/K-2720 74.8 93.0
1.500 3.125 1.156 3.5 3.3 K-3490/K-3420 91.3 110.0
1.500 3.151 0.844 1.5 1.5 K-28150/K-28317 56.1 64.0
1.500 3.250 1.156 0.8 3.3 K-HM 801346/K-HM 801310 85.8 118.0
1.500 3.250 1.156 2.3 3.3 K-HM 801346 X/K-HM 801310 85.8 118.0
1.500 3.484 1.063 3.5 1.5 K-418/K-414 101.0 114.0
1.563 2.875 0.938 3.5 0.8 K-2789/K-2735 X 74.8 93.0
1.563 2.875 1.010 0.8 2.3 K-M 201047/K-M 201011 66.0 86.5
1.563 3.000 0.938 3.5 0.8 K-2789/K-2729 74.8 93.0
1.563 3.000 0.938 3.5 3.3 K-2789/K-2720 74.8 93.0
1.614 2.755 0.689 3.6 1.5 K-LM 300849/K-LM 300811 44.0 58.5
1.625 2.875 0.656 3.5 1.5 K-18590/K-18520 46.8 56.0
1.625 2.891 0.770 3.5 0.8 K-LM 501349/K-LM 501310 55.0 69.5
1.625 2.891 0.844 3.5 0.8 K-LM 501349/K-LM 501314 55.0 69.5
1.625 2.891 0.906 3.5 2.3 K-LM 501349/K-LM 501311 55.0 69.5
1.625 3.000 0.709 1.5 1.5 K-11162/K-11300 45.7 56.0
1.625 3.000 0.875 3.5 0.8 K-24780/K-24720 68.2 86.5
1.625 3.250 1.045 3.5 3.3 K-M 802048/K-M 802011 73.7 91.5
1.625 3.438 1.188 1.5 3.3 K-3585/K-3525 102.0 132.0
1.625 3.438 1.188 3.5 3.3 K-3577/K-3525 102.0 132.0
1.625 3.484 1.063 3.5 1.5 K-419/K-414 101.0 114.0
1.625 3.500 1.188 35.0 3.3 K-HM 803146/K-HM 803110 95.2 127.0
1.625 3.750 1.219 1.5 0.8 K-53162/K-53375 88.0 96.5
1.625 3.750 1.219 1.5 2.3 K-53162/K-53370 88.0 96.5
1.625 3.875 1.219 1.5 1.5 K-53162/K-53387 X 88.0 96.5
1.625 4.000 1.375 3.5 3.3 K-526/K-522 151.0 190.0
1.688 3.438 1.188 3.5 3.3 K-3579/K-3525 102.0 132.0
1.688 3.265 0.938 3.5 0.8 K-25577/K-25520 80.9 106.0
1.688 3.265 1.063 3.5 2.3 K-25577/K-25523 80.9 106.0
1.688 3.270 0.940 3.5 2.0 K-25577/K-25522 80.9 106.0
1.750 2.875 0.719 1.5 1.5 K-L 102849/K-L 102810 48.4 67.0
1.750 3.265 0.938 3.5 0.8 K-25580/K-25520 80.9 106.0
1.750 3.265 1.059 3.5 2.3 K-25580/K-25523 80.9 106.0
1.750 3.270 0.940 3.5 2.0 K-25580/K-25522 80.9 106.0
1.750 3.438 1.188 3.5 3.3 K-3578/K-3525 102.0 132.0
1.750 3.500 1.188 3.5 3.3 K-HM 803149/K-HM 803110 95.2 127.0
1.750 3.548 0.906 3.5 2.3 K-355 X/K-352 70.4 81.5
1.750 3.625 1.188 3.5 3.3 LM 803149/LM 803112 95.2 127.0
1.750 3.672 1.188 3.5 3.3 K-3782/K-3720 110.0 146.0
1.750 3.750 1.094 3.5 2.3 K-438/K-432 105.0 125.0
1.750 3.750 1.094 0.8 0.8 K-33885/K-33822 105.0 137.0
1.750 3.750 1.219 1.3 0.8 K-53176/K-53375 88.0 96.5
1.750 3.750 1.219 1.3 2.3 K-53176/K-53377 88.0 96.5
1.750 3.750 1.219 2.0 0.8 K-53178/K-53375 88.0 96.5
1.750 3.750 1.219 2.0 2.3 K-53178/K-53377 88.0 96.5
1.750 3.750 1.219 3.5 0.8 K-53177/K-53375 88.0 96.5
1.750 3.750 1.219 3.5 0.8 K-HM 903249/K-HM 903210 101.0 122.0
1.750 3.875 1.219 1.3 1.5 K-53176/K-53387 X 88.0 96.5
1.750 4.000 1.375 3.5 3.3 K-527/K-522 151.0 190.0
1.750 4.250 1.438 3.5 3.3 K-535/K-532 X 151.0 190.0
1.750 4.375 1.500 3.5 3.3 K-535/K-532 A 151.0 190.0
1.750 4.750 1.625 3.5 3.3 K-615/K-612 168.0 212.0
1.771 3.672 1.188 3.5 3.3 K-3776/K-3720 110.0 146.0
1.771 3.347 0.813 2.0 1.5 K-358 X/K-354 X 70.4 81.5
1.771 4.133 0.926 2.5 2.5 K-HM 905843/K-HM 905810 110.0 146.0
1.781 3.063 0.781 3.5 0.8 K-LM 603049/K-LM 603011 53.9 69.5
1.796 3.265 0.938 3.5 0.8 K-25590/K-25520 80.9 106.0
1.796 3.265 1.063 3.5 2.3 K-25590/K-25523 80.9 106.0
1.796 3.270 0.940 3.5 2.0 K-25590/K-25522 80.9 106.0
1.811 2.952 0.709 2.3 1.5 K-LM 503349/K-LM 503310 50.1 71.0
1.811 3.582 1.260 3.5 3.5 K-HM 204049/K-HM 204010 121.0 156.0
1.813 3.125 0.688 2.8 1.5 K-18690/K-18620 49.5 62.0
1.813 3.347 0.813 2.3 1.5 K-359 S/K-354 X 70.4 81.5
1.875 3.813 0.827 0.8 0.8 K-386 A/K-382 A 80.9 102.0
1.875 4.000 1.375 3.5 3.3 K-528/K-522 151.0 190.0
1.875 4.000 1.375 8.0 3.3 K-528 R/K-522 151.0 190.0
1.875 4.375 1.188 3.5 3.3 K-55187/K-55437 95.2 114.0
1.875 4.438 1.188 3.5 3.3 K-55187/K-55443 95.2 114.0
1.938 4.063 0.931 3.5 3.3 K-5395/K-5335 176.0 240.0
1.938 4.125 1.438 3.5 3.3 K-HM 807044/K-HM 807010 145.0 204.0
1.969 3.672 1.188 3.5 3.3 50KW01/3720 110.0 146.0
2.000 3.347 0.688 3.5 1.5 K-18790/K-18720 50.1 65.5
2.000 3.500 0.813 3.5 1.3 K-368 A/K-362 A 76.5 91.5
2.000 3.543 0.984 3.5 2.0 K-368 A/K-362 X 76.5 91.5
2.000 3.625 0.969 3.5 0.8 K-28580/K-28521 85.8 118.0
2.000 3.672 1.188 3.5 3.3 K-3780/K-3720 110.0 146.0
2.000 3.750 1.094 3.5 0.8 K-33889/K-33822 105.0 137.0
2.000 3.844 0.969 3.5 0.8 K-28678/K-28622 89.7 129.0
2.000 4.000 1.375 3.5 3.3 K-529 X/K-522 151.0 190.0
2.000 4.125 1.169 3.5 3.3 K-4580/K-4535 157.0 224.0
2.000 4.125 1.188 6.4 3.3 K-45284/K-45220 130.0 173.0
2.000 4.125 1.438 3.5 3.3 K-HM807046/K-HM 807010 145.0 204.0
2.000 4.250 1.438 3.5 3.3 K-537/K-532 X 151.0 190.0
2.000 4.375 1.188 3.5 3.3 K-HM907643/K-HM 907614 105.0 140.0
2.000 4.375 1.188 3.5 3.3 K-55200/K-55437 95.2 114.0
2.000 4.375 1.500 3.5 3.3 K-537/K-532 A 151.0 190.0
2.000 4.438 1.188 3.5 3.3 K-55200/K-55443 95.2 114.0
2.000 4.625 1.313 3.5 3.3 K-66200/K-66462 128.0 150.0
2.063 3.625 0.969 0.8 3.5 28584/28521 85.8 118.0
2.125 3.500 0.750 2.3 2.0 K-LM 806649/K-LM 806610 583.0 78.0
2.125 3.750 1.094 1.5 0.8 K-33895/K-33822 105.0 137.0
2.125 4.125 1.438 3.5 3.3 K-HM 807049/K-HM 807010 145.0 204.0
2.125 4.250 1.438 3.5 3.3 K-539/K-532 X 151.0 190.0
2.125 4.375 1.500 3.5 3.3 K-539/K-532 A 151.0 190.0
2.125 4.750 1.625 3.5 3.3 K-621/K-612 168.0 212.0
2.125 4.875 1.438 3.3 3.5 CK 72212/2/SK 72487/3 157.6 291.0
2.125 5.000 1.750 3.5 3.3 K-65212/K-65500 209.0 275.0
2.188 3.844 0.969 3.5 3.5 K-28680/K-28622 89.7 129.0
2.188 4.813 1.719 1.3 1.3 K-5566/K-5535 201.0 305.0
2.250 3.813 0.827 2.3 0.8 K-387/K-382 A 80.9 102.0
2.250 3.813 0.827 3.5 0.8 K-387 A/K-382 A 80.9 102.0
2.250 3.813 0.827 5.0 0.8 K-387 AS/K-382 A 80.9 102.0
2.250 3.813 1.000 2.3 2.3 K-387/K-382 S 80.9 102.0
2.250 3.813 1.000 3.5 2.3 K-387 A/K-382 S 80.9 102.0
2.250 3.813 1.000 5.0 2.3 K-387 AS/K-382 S 80.9 102.0
2.250 3.844 0.969 3.5 0.8 K-28682/K-28622 89.7 129.0
2.250 3.875 0.827 2.3 0.8 K-387/K-382 80.9 102.0
2.250 3.875 0.827 3.5 0.8 K-387 A/K-382 80.9 102.0
2.250 3.875 0.827 5.0 0.8 K-387 AS/K-382 80.9 102.0
2.250 3.937 0.827 2.3 2.0 K-387/K-383 A 80.9 102.0
2.250 3.937 0.827 3.5 2.0 K-387 A/K-383 A 80.9 102.0
2.250 3.937 0.827 5.0 2.0 K-387 AS/K-383 A 80.9 102.0
2.250 4.125 1.188 2.3 3.3 K-462/K-453 X 121.0 160.0
2.250 4.250 1.094 2.3 2.3 K-462/K-453 AS 121.0 160.0
2.250 4.438 1.188 8.0 3.3 K-39581/K-39520 142.0 204.0
2.250 4.438 1.188 3.5 3.3 K-39580/K-39520 142.0 204.0
2.250 4.724 1.289 3.5 0.8 K-39580/K-39528 142.0 204.0
2.250 4.750 1.625 3.5 3.3 K-623/K-612 212.0 186.0
2.250 5.000 1.750 3.5 3.3 K-65225/K-65500 209.0 275.0
2.265 3.813 0.827 3.5 0.8 K-388 A/K-382 A 80.9 102.0
2.265 3.813 1.000 3.5 2.3 K-388 A/K-382 S 80.9 102.0
2.265 3.875 0.827 3.5 0.8 K-388 A/K-382 80.9 102.0
2.265 3.937 0.827 3.5 2.0 K-388 A/K-383 A 80.9 102.0
2.375 3.937 1.000 3.5 3.3 K-28985/K-28921 85.8 125.0
2.375 4.000 1.000 3.5 3.3 K-28985/K-28920 85.8 125.0
2.375 5.000 1.438 3.5 1.5 K-HM 813841/K-HM 813811 165.0 236.0
2.375 5.000 1.750 3.5 3.3 K-65237/K-65500 209.0 275.0
2.375 5.125 1.438 5.0 3.3 K-HM 9112245/K-HM 911210 151.0 180.0
2.438 5.375 1.813 3.5 3.3 K-H 715334/K-H 715311 229.0 375.0
2.438 5.750 1.625 3.5 3.3 K-H 913842/K-H 913810 198.0 236.0
2.438 5.750 1.625 7.0 3.3 K-H 913843/K-H 913810 198.0 236.0
2.500 4.125 0.844 2.0 2.0 K-39250/K39412 85.8 112.0
2.500 4.250 1.000 3.5 3.3 K-29585/K-29520 89.7 137.0
2.500 4.331 0.866 3.5 1.3 K-395/K-394 A 88.0 118.0
2.500 4.438 1.188 3.5 3.3 K-39585/K-39520 142.0 204.0
2.500 4.438 1.188 3.5 3.3 K-3982/K-3920 123.0 183.0
2.500 4.875 1.500 3.5 3.3 K-559/K-552 A 173.0 240.0
2.500 5.118 1.465 3.0 3.6 565XL/562SL 194.3 370.0
2.563 5.345 2.125 3.5 3.3 K-6379/K-6320 286.0 400.0
2.598 4.881 1.634 7.0 3.5 K-H 212749/K-H 212710 224.0 310.0
2.625 4.331 0.866 0.8 1.3 K-395 A/K-394 A 88.0 118.0
2.625 4.331 0.866 3.5 1.3 K-395 S/K-394 A 88.0 118.0
2.625 4.331 1.000 3.5 1.3 K-29590/K-29521 89.7 137.0
2.625 4.438 1.188 3.5 3.3 K-3984/K-3920 123.0 183.0
2.625 4.438 1.188 3.5 0.8 K-3984/K-3925 123.0 183.0
2.625 4.438 1.188 3.5 3.3 K-39590/K-39520 142.0 204.0
2.625 4.625 1.188 3.5 3.3 K-33262/K-33462 123.0 190.0
2.625 4.724 1.173 3.5 0.8 K-33262/K-33472 123.0 190.0
2.625 4.875 1.500 3.5 3.3 K-560/K-552 A 172.0 240.0
2.625 5.345 2.125 4.3 3.3 K-6386/K-6320 286.0 400.0
2.625 5.375 1.625 3.5 3.3 K-641/K-632 194.0 260.0
2.688 4.331 0.866 2.3 1.3 K-399 A/K-394 A 88.0 118.0
2.688 5.375 1.813 3.5 3.3 K-H 715343/K-H 715311 229.0 375.0
2.688 6.375 1.938 3.5 3.3 K-9278/K-9220 260.0 335.0
2.750 3.906 0.669 1.5 1.5 K-LL 713149/K-LL 713110 46.8 76.5
2.750 4.438 1.000 1.5 3.3 K-29675/K-29620 99.0 156.0
2.750 4.625 1.188 3.5 3.3 K-33275/K-33462 123.0 190.0
2.750 4.724 1.173 3.5 0.8 K-33275/K-33472 123.0 190.0
2.750 4.724 1.173 3.5 2.0 K-482/K-472 132.0 186.0
2.750 4.724 1.281 3.5 3.3 K-47487/K-47420 154.0 228.0
2.750 4.875 1.188 3.5 3.3 K-482/K-472 X 132.0 186.0
2.750 5.000 1.438 3.5 3.3 K-566/K-563 176.0 255.0
2.756 4.724 1.173 2.0 2.0 K-484/K-472 132.0 186.0
2.813 4.625 1.188 3.5 3.3 K-33281/K-33462 123.0 190.0
2.813 4.724 1.173 3.5 0.8 K-33281/K-33472 123.0 190.0
2.813 4.724 1.281 3.5 3.3 K-47490/K-47420 154.0 228.0
2.813 5.000 1.438 3.5 1.5 K-HM 813849/K-813811 165.0 236.0
2.813 5.375 1.625 6.4 3.3 K-645/K-632 194.0 260.0
2.813 5.375 1.625 3.5 3.3 K-H 414249/K-H 414210 224.0 290.0
2.813 5.375 1.813 3.5 3.3 K-H 715345/K-H 715311 229.0 375.0
2.875 4.438 1.000 3.5 3.3 K-29685/K-29620 99.0 156.0
2.875 4.625 1.188 3.5 3.3 K-33287/K-33462 123.0 190.0
2.875 4.724 1.173 3.5 0.8 K-33287/K-33472 123.0 190.0
2.875 5.000 1.438 3.5 3.3 K-567/K-563 176.0 255.0
2.875 5.000 1.438 4.8 3.3 K-567 X/K-563 176.0 255.0
3.000 4.313 0.750 1.5 1.5 K-L 814749/K-L 814710 58.3 102.0
3.000 5.000 1.188 3.5 3.3 K-42687/K-42620 138.0 204.0
3.000 5.000 1.188 6.4 3.3 K-42688/K-42620 138.0 204.0
3.000 5.250 1.188 6.4 3.3 K-495 AX/K-492 A 145.0 220.0
3.000 5.250 1.188 3.5 3.3 K-495 A/K-492 A 145.0 220.0
3.000 5.250 1.313 6.4 3.3 K-47678/K-47620 165.0 260.0
3.000 5.375 1.188 3.5 3.3 K-495 A/K-493 145.0 220.0
3.000 5.375 1.188 6.4 3.3 K-495 AX/K-493 145.0 220.0
3.000 5.500 1.438 3.5 3.3 K-575/K-572 X 187.0 280.0
3.000 5.512 1.438 3.5 3.3 K-575/K-572 187.0 280.0
3.000 5.750 1.625 3.5 3.3 K-659/K-653 220.0 320.0
3.000 5.909 1.750 3.5 3.3 K-748 S/K-742 286.0 405.0
3.000 6.000 1.625 3.5 3.3 K-659/K-652 220.0 320.0
3.000 6.375 1.938 3.5 3.3 K-9285/K-9220 260.0 335.0
3.063 4.625 1.000 3.5 3.3 K-LM 814849/K-LM 814810 101.0 163.0
3.188 5.250 1.188 3.5 3.3 K-496/K-492 A 145.0 220.0
3.188 5.375 1.188 3.5 3.3 K-496/K-493 145.0 220.0
3.250 4.938 1.000 3.5 1.5 K-27687/K-27620 112.0 186.0
3.250 5.250 1.188 3.5 3.3 K-495/K-492 A 145.0 220.0
3.250 5.250 1.313 3.5 3.3 K-47686/K-47620 165.0 260.0
3.250 5.375 1.188 3.5 3.3 K-495/K-493 145.0 220.0
3.250 5.500 1.438 3.5 3.3 C-580/K-572 X 187.0 280.0
3.250 5.512 1.438 3.5 3.3 K-580/K-572 187.0 280.0
3.250 5.512 1.438 6.8 3.3 K-582/K-572 187.0 280.0
3.250 5.750 1.625 3.5 3.3 K-663/K-653 220.0 320.0
3.250 5.909 1.750 3.5 3.3 K-749 A/K-742 286.0 405.0
3.250 6.000 1.625 3.5 3.3 K-663/K-652 220.0 320.0
3.281 4.938 1.000 3.5 1.5 K-27690/K-27620 112.0 186.0
3.313 5.250 1.188 3.5 3.3 K-498/K-492 A 145.0 220.0
3.313 5.375 1.188 3.5 3.3 K-498/K-493 145.0 220.0
3.348 5.909 1.750 3.5 3.3 K-749/K-742 286.0 405.0
3.375 5.250 1.188 3.5 3.3 K-497/K-492 A 145.0 220.0
3.375 5.375 1.188 3.5 3.3 K-497/K-493 145.0 220.0
