Tapered Roller Bearings - Single Row / Metric Series Product Table

Product Table

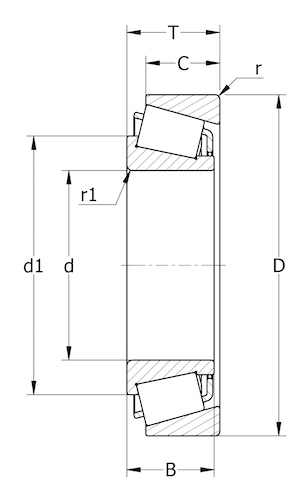

Boundary Dimensions
(mm)		 Bearing Number Basic Load Ratings
(N)		 Speed Ratings
(rpm)		 Mass
(kg)		 Abutment Dimensions
(mm)
d D B r
(min.)		 r1
(min.)		   C
(dynamic)		 C0
(static)		 Reference Speed Limiting Speed   d1 D1
15 35 11.75 0.6 0.6 30202 12.5 11.8
15 42 14.25 1.0 1.0 30302 22.4 20.0
17 40 13.25 1.0 1.0 30203 19.0 18.6
17 47 15.25 1.0 1.0 30303 28.1 25.0
17 47 20.25 1.0 1.0 32303 34.7 33.5
18 47 14.38 2.0 2.0 I 100545/46 26.4 43.3
20 42 15.00 0.6 0.6 32004 24.2 27.0
20 47 15.25 1.0 1.0 30204 27.5 28.0
20 52 16.25 1.5 1.5 30304 34.1 32.5
20 52 22.25 1.5 1.5 32304 44.0 45.8
22 44 15.00 0.6 0.6 320/22 25.1 29.0
22 47 17.00 1.0 1.0 T2CC 022 34.1 36.5
25 47 15.00 0.6 0.6 32005 27.0 32.5
25 52 16.25 1.0 1.0 30205 30.8 33.5
25 52 19.25 1.0 1.0 32205 35.8 44.0
25 52 22.00 1.0 1.0 33205 47.3 56.0
25 62 18.25 1.5 1.5 30305 44.6 43.0
25 62 18.25 1.5 1.5 31305 38.0 40.0
25 62 25.25 1.5 1.5 32305 60.5 63.0
28 52 16.00 1.0 1.0 320/28 31.9 38.0
28 58 20.25 1.0 1.0 322/28 41.8 50.0
28 70 20.50 1.5 1.5 1838051/52 59.5 96.1
30 55 17.00 1.0 1.0 32006 35.8 44.0
30 62 17.25 1.0 1.0 30206 40.2 44.0
30 62 21.25 1.0 1.0 32206 50.1 57.0
30 62 21.25 1.0 1.0 32206 B 49.5 58.5
30 62 25.00 1.0 1.0 33206 64.4 76.5
30 72 20.75 1.5 1.5 30306 56.1 56.0
30 72 20.75 1.5 1.5 31306 47.3 50.0
30 72 28.75 1.5 1.5 32306 76.5 85.0
32 58 17.00 1.0 1.0 320/32 36.9 46.5
33 62 16.00 2.5 2.5 1838055/56 43.5 76.3
35 62 18.00 1.0 1.0 32007 42.9 54.0
35 72 18.25 1.5 1.5 30207 51.2 56.0
35 72 24.25 1.5 1.5 32207 66.0 78.0
35 72 24.25 1.5 1.5 32207 B 60.5 75.0
35 72 28.00 1.5 1.5 33207 84.2 106.0
35 80 22.75 2.0 1.5 30307 72.1 73.5
35 80 22.75 2.0 1.5 31307 61.6 67.0
35 80 32.75 2.0 1.5 32307 95.2 106.0
35 80 32.75 2.0 1.5 32307 B 93.5 114.0
35 68 19.00 1.0 1.0 32008 52.8 71.0
35 75 26.00 1.5 1.5 33108 79.2 104.0
35 80 19.75 1.5 1.5 30208 61.6 68.0
35 80 24.75 1.5 1.5 32208 74.8 86.5
35 80 32.00 1.5 1.5 33208 105.0 132.0
35 85 33.00 2.0 1.5 T2EE 040 121.0 150.0
35 90 25.25 2.5 2.0 30308 85.8 95.0
35 90 25.25 2.0 1.5 31308 73.7 81.5
35 90 35.25 2.0 1.5 32308 117.0 140.0
35 90 35.25 2.0 1.5 32308 B 108.0 140.0
35 95 27.50 2.0 1.5 331257 94.4 170.4
45 75 20.00 1.0 1.0 32009 58.3 80.0
45 80 26.00 1.5 1.5 33109 84.2 114.0
45 85 20.75 1.5 1.5 30209 66.0 76.5
45 85 24.75 1.5 1.5 32209 80.9 98.0
45 85 27.75 1.5 1.5 32209 sp 80.9 98.0
45 85 27.75 1.5 1.5 32209 B 73.7 93.0
45 85 32.00 1.5 1.5 33209 108.0 143.0
45 95 29.00 2.5 2.5 T7FC 045 89.7 112.0
45 95 36.00 2.5 2.5 T2ED 045 147.0 186.0
45 100 27.25 2.0 1.5 30309 108.0 120.0
45 100 27.25 2.0 1.5 31309 91.3 102.0
45 100 38.45 2.0 1.5 32309 140.0 170.0
45 100 38.45 2.0 1.5 32309 B 134.0 176.0
50 80 20.00 1.0 1.0 32010 60.5 154.8
50 80 24.00 1.0 1.0 33010 69.3 102.0
50 82 21.50 3.0 0.5 K-JLM 104948/104910 72.1 100.0
50 85 26.00 1.5 1.5 33110 85.8 122.0
50 90 21.75 1.5 1.5 30210 76.5 91.5
50 90 24.75 1.5 1.5 32210 82.5 100.0
50 90 24.75 1.5 1.5 32210 B 82.5 104.0
50 90 28.00 3.0 2.5 K-JLM 205149/205110 106.0 140.0
50 90 28.00 3.0 0.8 K-JLM 205149/205110 A 106.0 140.0
50 90 32.00 1.5 1.5 33210 114.0 160.0
50 100 36.00 2.5 2.5 T2ED 050 154.0 200.0
50 105 32.00 3.0 3.0 T7FC 050 108.0 137.0
50 110 29.25 2.5 2.0 30310 125.0 140.0
50 110 29.25 2.5 2.0 31310 106.0 120.0
50 110 42.25 2.5 2.0 32310 172.0 212.0
50 110 42.25 2.5 2.0 32310 B 161.0 216.0
55 90 23.00 1.5 0.5 K-JLM 506849/506810 78.1 112.0
55 90 23.00 1.5 1.5 32011 80.9 116.0
55 99 27.00 1.5 1.5 33011 89.7 137.0
55 95 30.00 1.5 1.5 33111 110.0 156.0
55 100 22.75 2.0 1.5 30211 89.7 106.0
55 100 26.75 2.0 1.5 32211 106.0 129.0
55 100 26.75 2.0 1.5 32211 B 101.0 127.0
55 100 35.00 2.0 1.5 33211 138.0 190.0
55 110 39.00 2.5 2.5 T2ED 055 179.0 232.0
55 115 34.00 3.0 3.0 T7FC 055 125.0 163.0
55 120 31.50 2.5 2.0 30311 142.0 163.0
55 120 31.50 2.5 2.0 31311 121.0 137.0
55 120 45.50 2.5 2.0 32311 198.0 250.0
55 120 45.50 2.5 2.0 32311 B 190.0 260.0
60 95 23.00 1.5 1.5 32012 82.5 122.0
60 95 24.00 5.0 2.5 K-JLM 508748/508710 84.2 132.0
60 95 27.00 1.5 1.5 33012 91.3 143.0
60 100 30.00 1.5 1.5 33112 117.0 170.0
60 110 23.75 2.0 1.5 30212 99.0 114.0
60 110 29.75 2.0 1.5 32212 125.0 160.0
60 110 38.00 2.0 1.5 33212 168.0 236.0
60 115 39.00 4.0 2.5 T5ED 060 168.0 250.0
60 115 40.00 2.5 2.5 T2EE 060 194.0 260.0
60 125 37.00 3.0 3.0 T7FC 060 154.0 204.0
60 110 29.75 2.5 0.5 330201 125.0 160.0
60 120 45.50 3.0 2.5 215424 C 194.2 408.7
60 130 33.50 3.0 2.5 30312 168.0 196.0
60 130 33.50 3.0 2.5 31312 145.0 166.0
60 130 48.80 3.0 2.5 32312 229.0 290.0
60 130 48.80 3.0 2.5 32312 B 220.0 305.0
60 135 33.45 3.5 3.5 330632 161.9 304.6
65 100 23.00 1.5 1.5 32013 84.2 127.0
65 100 27.00 1.5 1.5 33013 96.8 156.0
65 110 28.00 3.0 2.5 K-JM 511946/511910 123.0 183.0
65 110 34.00 1.5 1.5 33113 142.0 208.0
65 120 24.75 2.0 1.5 30213 114.0 134.0
65 120 32.75 2.0 1.5 32213 151.0 193.0
65 120 39.00 4.0 2.5 T5ED 065 161.0 240.0
65 120 39.00 3.0 2.5 K-JH 211749/211710 187.0 265.0
65 120 41.00 2.0 1.5 33213 194.0 270.0
65 130 37.00 3.0 3.0 T7FC 065 157.0 216.0
65 140 36.00 3.0 2.5 30313 194.0 228.0
65 140 36.00 3.0 2.5 31313 165.0 193.0
65 140 51.00 3.0 2.5 32313 264.0 335.0
65 140 51.00 3.0 2.5 32313 B 246.0 345.0
65 145 40.00 3.0 3.0 77213 198.4 386.6
65 150 53.50 2.5 2.0 215426 C 301.2 649.7
70 110 25.00 1.5 1.5 32014 101.0 153.0
70 110 26.00 1.0 2.5 K-JLM 803146/803110 101.0 160.0
70 110 31.00 1.5 1.5 33014 130.0 196.0
70 120 37.00 2.0 1.5 33114 172.0 250.0
70 125 26.25 2.0 1.5 30214 125.0 156.0
70 125 33.25 2.0 1.5 32214 157.0 208.0
70 125 41.00 2.0 1.5 33214 201.0 285.0
70 130 43.00 3.0 2.5 T2ED 070 233.0 325.0
70 140 39.00 3.0 3.0 T7FC 070 176.0 240.0
70 140 52.00 5.0 3.0 T4FE 070 281.0 405.0
70 150 38.00 3.0 2.5 30314 220.0 260.0
70 150 38.00 3.0 2.5 31314 187.0 220.0
70 150 54.00 3.0 2.5 32314 297.0 380.0
70 150 54.00 3.0 2.5 32314 B 281.0 400.0
75 105 20.00 1.0 1.0 32915 70.4 116.0
75 115 25.00 1.5 1.5 32015 106.0 163.0
75 115 31.00 1.5 1.5 33015 134.0 228.0
75 120 31.00 3.0 2.5 K-JM 714249/714210 138.0 216.0
75 125 37.00 2.0 1.5 33115 176.0 265.0
75 130 27.25 2.0 1.5 30215 140.0 176.0
75 130 33.25 2.0 1.5 32215 161.0 212.0
75 130 41.00 2.0 1.5 33215 209.0 300.0
75 145 51.00 3.0 2.5 K-JH 415647/415610 308.0 450.0
75 150 42.00 3.0 3.0 T7FC 075 201.0 280.0
75 160 40.00 3.0 2.5 30315 246.0 290.0
75 160 40.00 3.0 2.5 31315 209.0 245.0
75 160 58.00 3.0 2.5 32315 336.0 440.0
75 160 58.00 3.0 2.5 32315 B 336.0 475.0
80 125 29.00 1.5 1.5 32016 138.0 216.0
80 125 36.00 1.5 1.5 33016 168.0 285.0
80 130 37.00 2.0 1.5 33116 179.0 280.0
80 140 28.25 2.5 2.0 30216 151.0 183.0
80 140 35.25 2.5 2.0 32216 187.0 245.0
80 140 46.00 2.5 2.0 33216 251.0 375.0
80 145 46.00 3.0 2.5 T2ED 080 281.0 400.0
80 170 42.50 3.0 2.5 30316 270.0 320.0
80 170 42.50 3.0 2.5 31316 224.0 265.0
80 170 61.50 3.0 2.5 32316 380.0 500.0
80 170 61.50 3.0 2.5 32316 B 358.0 520.0
85 130 29.00 1.5 1.5 32017 140.0 224.0
85 130 30.00 3.0 2.5 K-JM 716649/716610 140.0 228.0
85 130 36.00 1.5 1.5 33017 183.0 310.0
85 140 41.00 2.5 2.0 33117 220.0 340.0
85 150 30.50 2.5 2.0 30217 176.0 220.0
85 150 38.50 2.5 2.0 32217 212.0 285.0
85 150 49.00 2.5 2.0 33217 286.0 430.0
85 180 44.50 4.0 3.0 30317 303.0 365.0
85 180 44.50 4.0 3.0 31317 242.0 285.0
85 180 63.50 4.0 3.0 32317 402.0 530.0
85 180 63.50 4.0 3.0 32317 B 391.0 560.0
90 140 32.00 2.0 1.5 32018 168.0 270.0
90 140 39.00 2.0 1.5 33018 216.0 355.0
90 145 35.00 6.0 2.5 K-JM 718149/718110 201.0 305.0
90 150 45.00 2.5 2.0 33118 251.0 390.0
90 155 46.00 3.0 3.0 T2ED 090 286.0 430.0
90 160 32.50 2.5 2.0 30218 194.0 245.0
90 160 42.50 2.5 2.0 32218 251.0 340.0
90 160 49.50 2.5 2.0 215436 C 261.6 602.7
90 175 48.00 4.0 4.0 T7FC 090 270.0 380.0
90 190 46.50 4.0 3.0 30318 330.0 400.0
90 190 46.50 4.0 3.0 31318 264.0 315.0
90 190 67.50 4.0 3.0 32318 457.0 610.0
95 130 23.00 1.5 1.5 32919 102.0 183.0
95 145 32.00 2.0 1.5 32019 168.0 270.0
95 145 39.00 2.0 1.5 33019 220.0 375.0
95 160 46.00 3.0 3.0 T2ED 095 297.0 455.0
95 170 34.50 3.0 2.5 30219 216.0 275.0
95 170 45.50 3.0 2.5 32219 281.0 390.0
95 200 49.50 4.0 3.0 30319 330.0 390.0
95 200 49.50 4.0 3.0 31319 292.0 355.0
95 200 71.50 4.0 3.0 32319 501.0 670.0
100 145 24.00 3.0 3.0 T4CB 100 125.0 190.0
100 150 32.00 2.0 1.5 32020 172.0 280.0
100 150 39.00 2.0 1.5 33020 224.0 390.0
100 160 41.00 3.0 3.0 K-JHM 720249/720210 246.0 390.0
100 165 47.00 3.0 2.5 T2EE 100 314.0 480.0
100 180 37.00 3.0 2.5 30220 246.0 320.0
100 180 49.00 3.0 2.5 32220 319.0 440.0
100 180 63.00 3.0 2.5 33220 429.0 655.0
100 215 51.50 4.0 3.0 30320 402.0 490.0
100 215 56.50 4.0 3.0 31320 374.0 465.0
100 215 77.50 4.0 3.0 32320 572.0 780.0
105 145 25.00 1.5 1.5 32921 129.0 220.0
105 160 35.00 2.5 2.0 32021 201.0 335.0
105 190 39.00 3.0 3.0 214442 C 257.3 506.9
105 160 43.00 2.5 2.0 33021 246.0 430.0
105 190 39.00 3.0 2.5 30221 270.0 355.0
105 190 53.00 3.0 2.5 32221 358.0 510.0
105 225 53.50 4.0 3.0 30321 429.0 530.0
105 225 58.00 4.0 3.0 31321 402.0 500.0
105 225 81.50 4.0 3.0 32321 605.0 815.0
110 150 25.00 1.5 1.5 32922 125.0 224.0
110 160 27.00 3.0 3.0 T4CB 110 154.0 232.0
110 170 38.00 3.0 2.5 214244 C 215.3 534.7
110 170 38.00 2.5 2.0 32022 233.0 390.0
110 170 47.00 2.5 2.0 33022 281.0 500.0
110 180 47.00 3.0 2.5 K-JHM 522649/522610 319.0 520.0
110 180 56.00 2.5 2.0 33122 369.0 630.0
110 200 41.00 3.0 2.5 30222 308.0 405.0
110 200 56.00 3.0 2.5 32222 402.0 570.0
110 240 54.50 4.0 3.0 30322 473.0 585.0
110 240 63.50 4.0 3.0 31322 457.0 585.0
110 240 84.50 4.0 3.0 32322 627.0 830.0
120 165 29.00 1.5 1.5 32924 176.0 310.0
120 170 27.00 3.0 3.0 T4CB 120 157.0 250.0
120 180 38.00 2.5 2.0 32024 242.0 415.0
120 180 48.00 2.5 2.0 33024 292.0 540.0
120 215 43.50 3.0 2.5 30224 341.0 465.0
120 215 61.50 3.0 2.5 32224 468.0 695.0
120 260 59.50 4.0 3.0 30324 561.0 710.0
120 260 68.00 4.0 3.0 31324 539.0 695.0
120 260 90.50 4.0 3.0 32324 792.0 1120.0
130 180 32.00 2.0 1.5 32926 198.0 365.0
130 185 29.00 3.0 3.0 T4CB 130 194.0 315.0
130 200 45.00 2.5 2.0 32026 314.0 540.0
130 230 43.75 4.0 3.0 30226 369.0 490.0
130 230 67.75 4.0 3.0 32226 550.0 830.0
130 280 63.75 5.0 4.0 30326 627.0 800.0
130 280 72.00 5.0 4.0 31326 605.0 780.0
130 280 98.75 5.0 4.0 32326 858.0 1180.0
140 190 32.00 2.0 1.5 32928 205.0 390.0
140 195 29.00 3.0 3.0 T4CB 140 194.0 325.0
140 210 45.00 2.5 2.0 32028 330.0 585.0
140 250 45.75 4.0 3.0 30228 418.0 570.0
140 250 71.75 4.0 3.0 32228 644.0 1000.0
140 300 67.75 5.0 4.0 30328 737.0 950.0
140 300 77.00 5.0 4.0 31328 693.0 900.0
150 210 32.00 3.0 3.0 T4DB 150 233.0 390.0
150 210 38.00 2.5 2.0 32930 285.0 500.0
150 225 48.00 3.0 2.5 32030 369.0 655.0
150 225 59.00 3.0 2.5 33030 457.0 865.0
150 270 49.00 4.0 3.0 30230 429.0 560.0
150 270 77.00 4.0 3.0 32230 737.0 1140.0
150 320 72.00 5.0 4.0 30330 825.0 1060.0
150 320 82.00 5.0 4.0 31330 781.0 1020.0
150 320 114.00 5.0 4.0 32330 1170.0 1660.0
160 220 32.00 3.0 3.0 T4DB 160 242.0 415.0
160 220 38.00 2.5 2.0 32932 300.0 530.0
160 240 51.00 3.0 2.5 32032 429.0 780.0
160 290 52.00 4.0 3.0 30232 528.0 735.0
160 290 84.00 4.0 3.0 32232 880.0 1400.0
160 340 75.00 5.0 4.0 30332 913.0 1180.0
170 230 38.00 2.5 2.0 32934 286.0 585.0
170 260 57.00 3.0 2.5 32034 512.0 915.0
170 310 57.00 5.0 4.0 30234 616.0 865.0
170 310 91.00 5.0 4.0 32234 1010.0 1630.0
170 360 80.00 5.0 4.0 30334 1020.0 1340.0
180 250 45.00 2.5 2.0 32936 352.0 735.0
180 280 64.00 3.0 2.5 32036 644.0 1160.0
180 320 57.00 5.0 4.0 30236 583.0 815.0
180 320 91.00 5.0 4.0 32236 1010.0 1630.0
190 260 45.00 2.5 2.0 32938 358.0 765.0
190 290 64.00 3.0 2.5 32038 660.0 1200.0
190 340 60.00 5.0 4.0 30238 721.0 1000.0
190 340 97.00 5.0 4.0 32238 1190.0 1930.0
200 280 51.00 3.0 2.5 32940 473.0 950.0
200 310 70.00 3.0 2.5 32040 748.0 1370.0
200 360 64.00 5.0 4.0 30240 792.0 1120.0
200 360 104.00 5.0 4.0 32240 1210.0 2000.0
220 285 41.00 4.0 3.0 T2DC 220 396.0 830.0
220 300 51.00 3.0 2.5 32944 500.0 980.0
220 340 76.00 4.0 3.0 32044 897.0 1660.0
220 400 72.00 5.0 4.0 30244 990.0 1400.0
220 400 114.00 5.0 4.0 32244 1610.0 2700.0
240 320 42.00 3.0 3.0 T4EB 240 429.0 815.0
240 320 51.00 3.0 2.5 32948 512.0 1080.0
240 360 76.00 4.0 3.0 32048 935.0 1800.0
240 440 127.00 5.0 4.0 32248 1940.0 3350.0
260 360 63.50 3.0 2.5 32952 750.0 1500.0
260 400 87.00 5.0 4.0 32052 1170.0 2200.0
260 480 137.00 6.0 5.0 32252 2200.0 3650.0
260 540 113.00 6.0 6.0 30352 2120.0 3050.0
280 380 63.50 3.0 2.5 32956 765.0 1660.0
280 420 87.00 5.0 4.0 32056 1210.0 2360.0
300 420 76.00 4.0 3.0 32960 1050.0 2240.0
300 460 100.00 5.0 4.0 32060 1530.0 2900.0
320 480 100.00 5.0 4.0 32064 1540.0 3100.0
